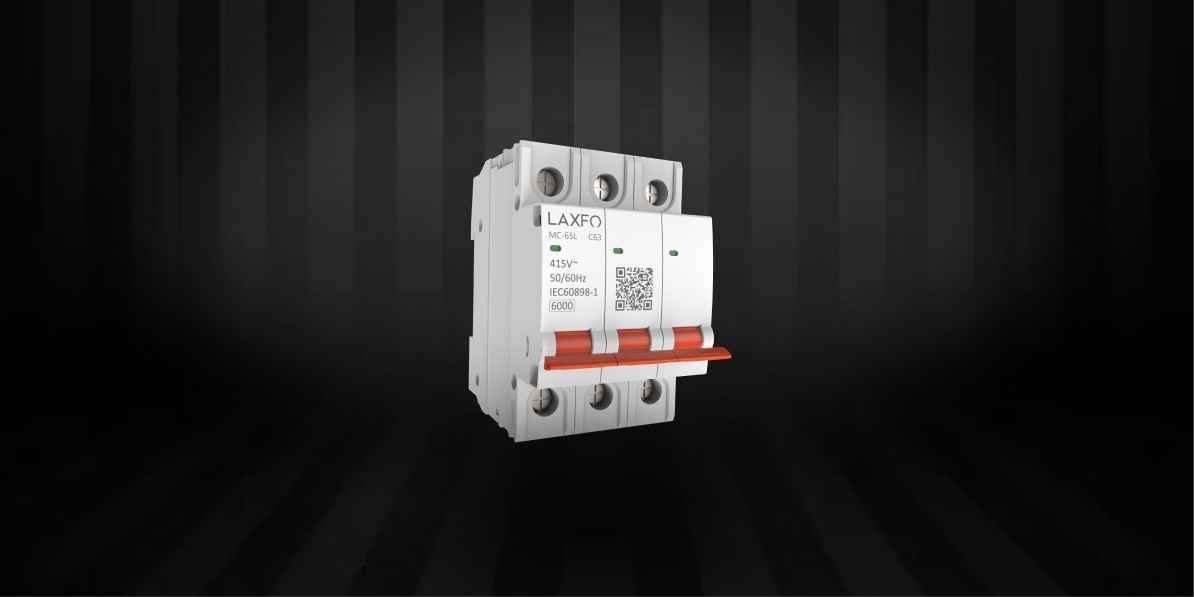

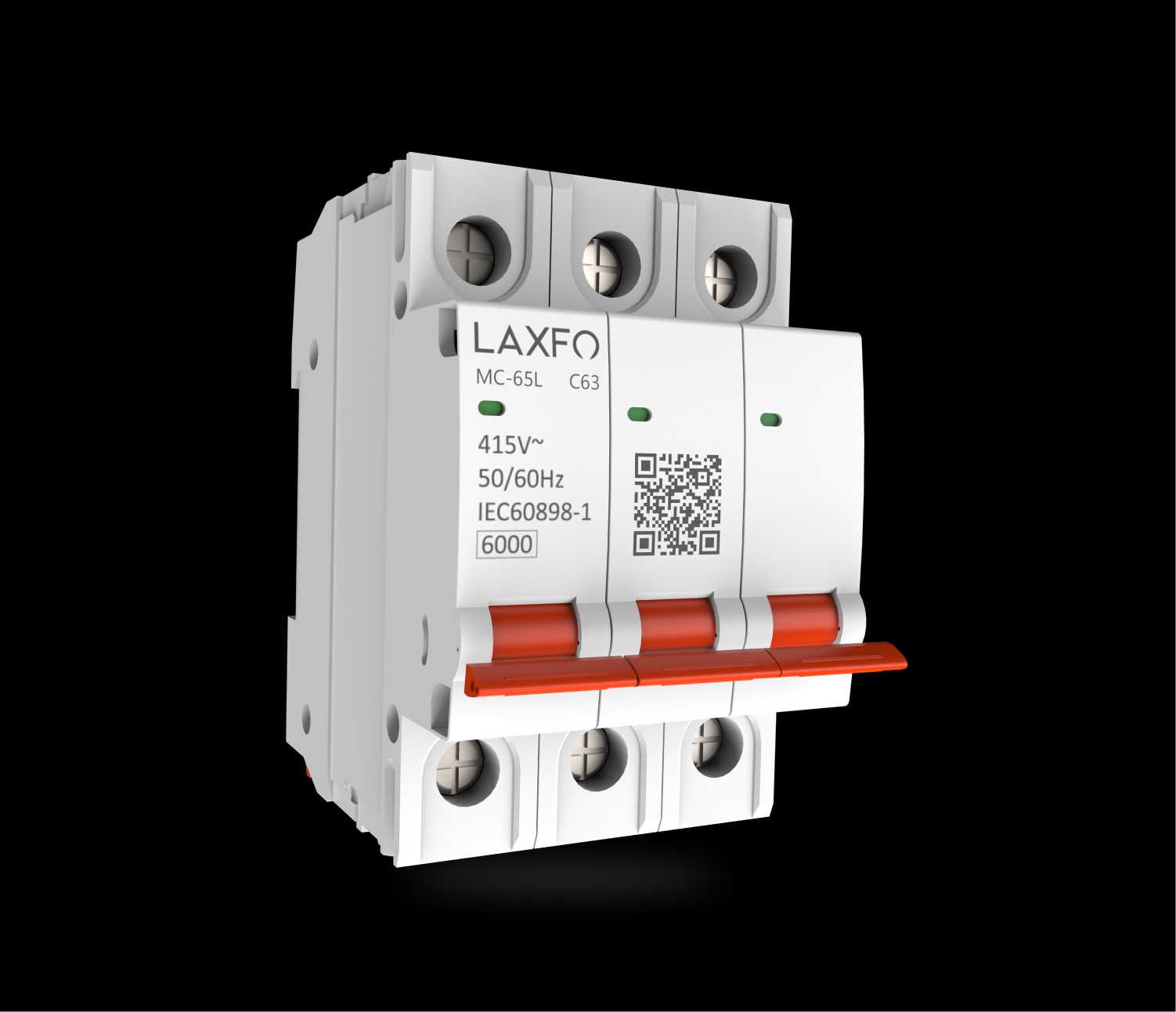

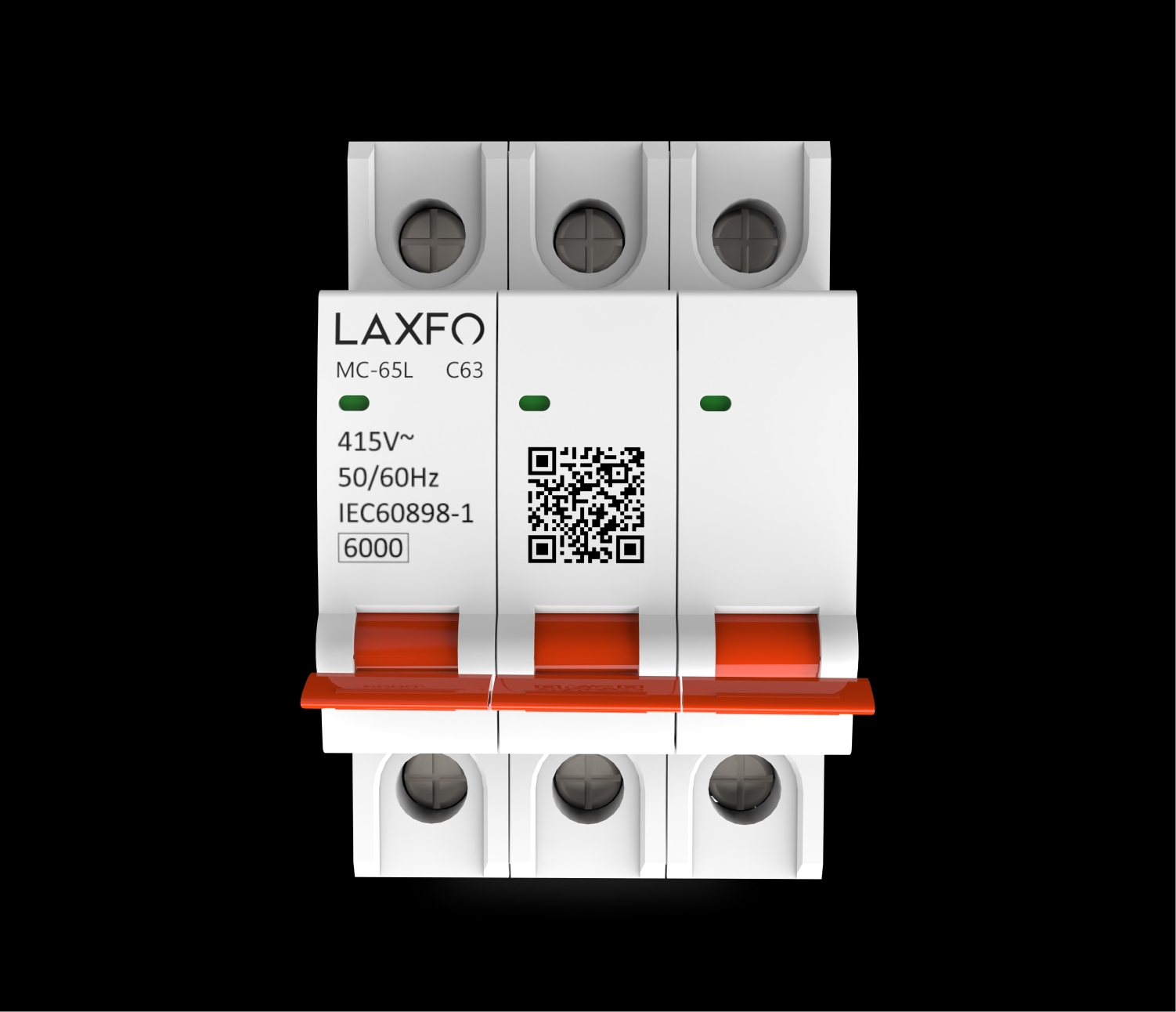

Triple Pole Circuit Breaker (TPC63-6 (63A,6KA))
Upgrade your system with the LAXFO 63A Triple Pole Circuit Breaker for reliable three-phase power control. Engineered to IEC 60898-1 standards, it guarantees immediate safety with 6kA short-circuit protection against overloads and faults. Featuring superior UL 94 V9 fire resistance, this durable device provides effortless isolation and switching on 230/400V AC lines.
Price
Tk.735
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 63 A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 3 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
