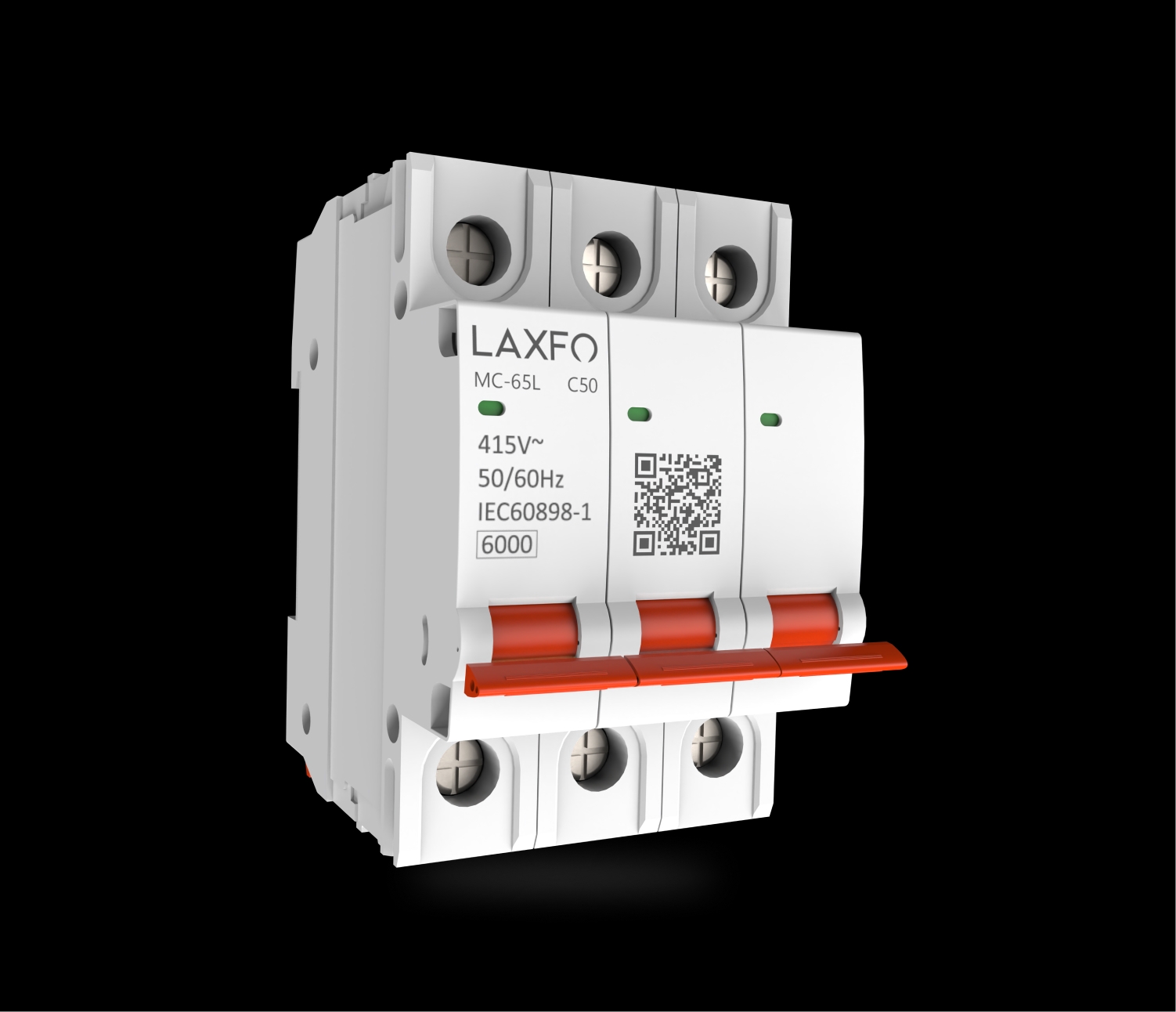

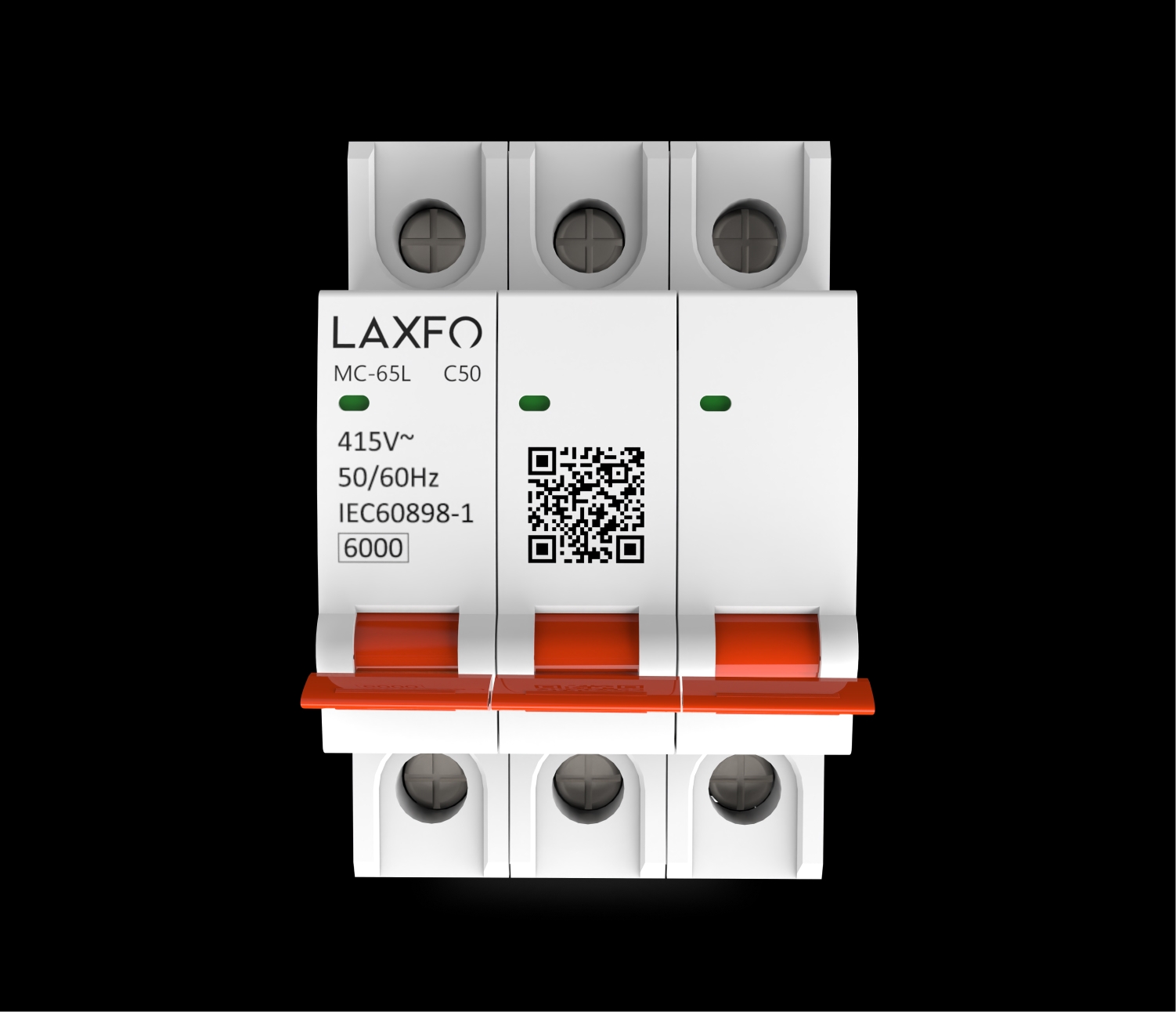

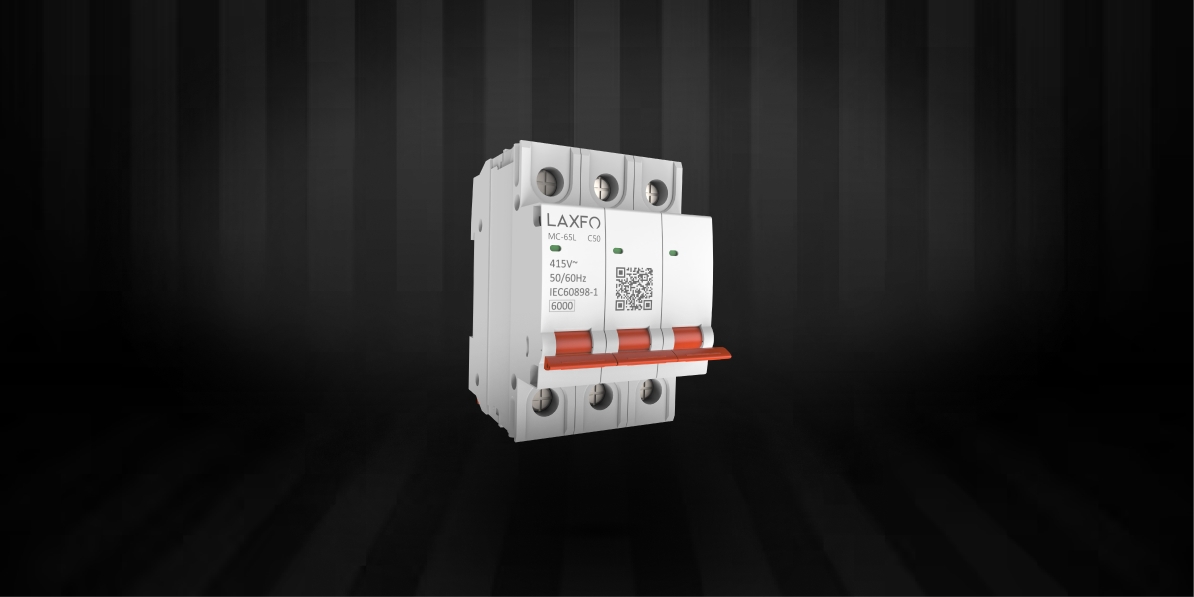

Triple Pole Circuit Breaker (TPC50-6 (50A,6KA))
To secure your electrical equipment in your industrial area, LAXFO Electronics has brought 50A triple-pole circuit breakers that are built for a three-phase power system. This 50A circuit breaker comes with advanced features such as short-circuit protection, smooth isolation, overload protection, and other essential features that ensure added safety for your industrial power system. Collect your unit today and keep your power system safe 24/7/365.
Price
Tk.735
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 50 A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 3 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
