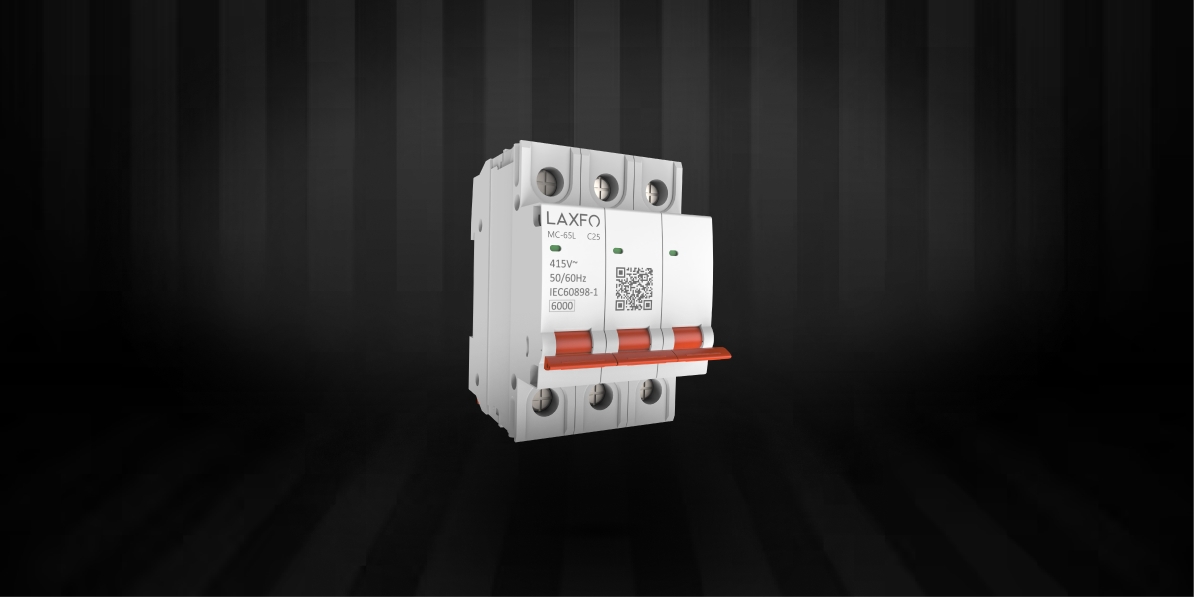

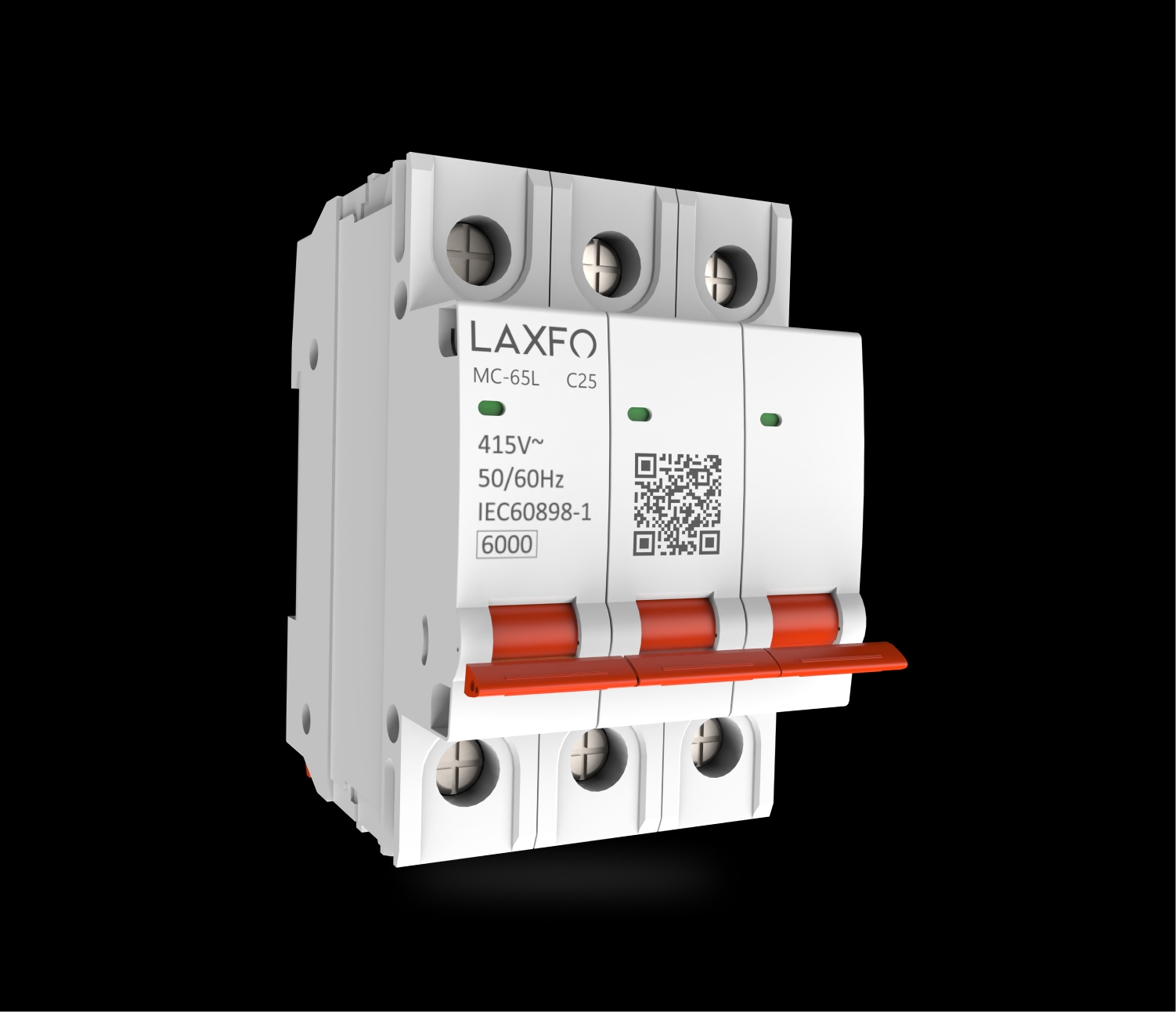

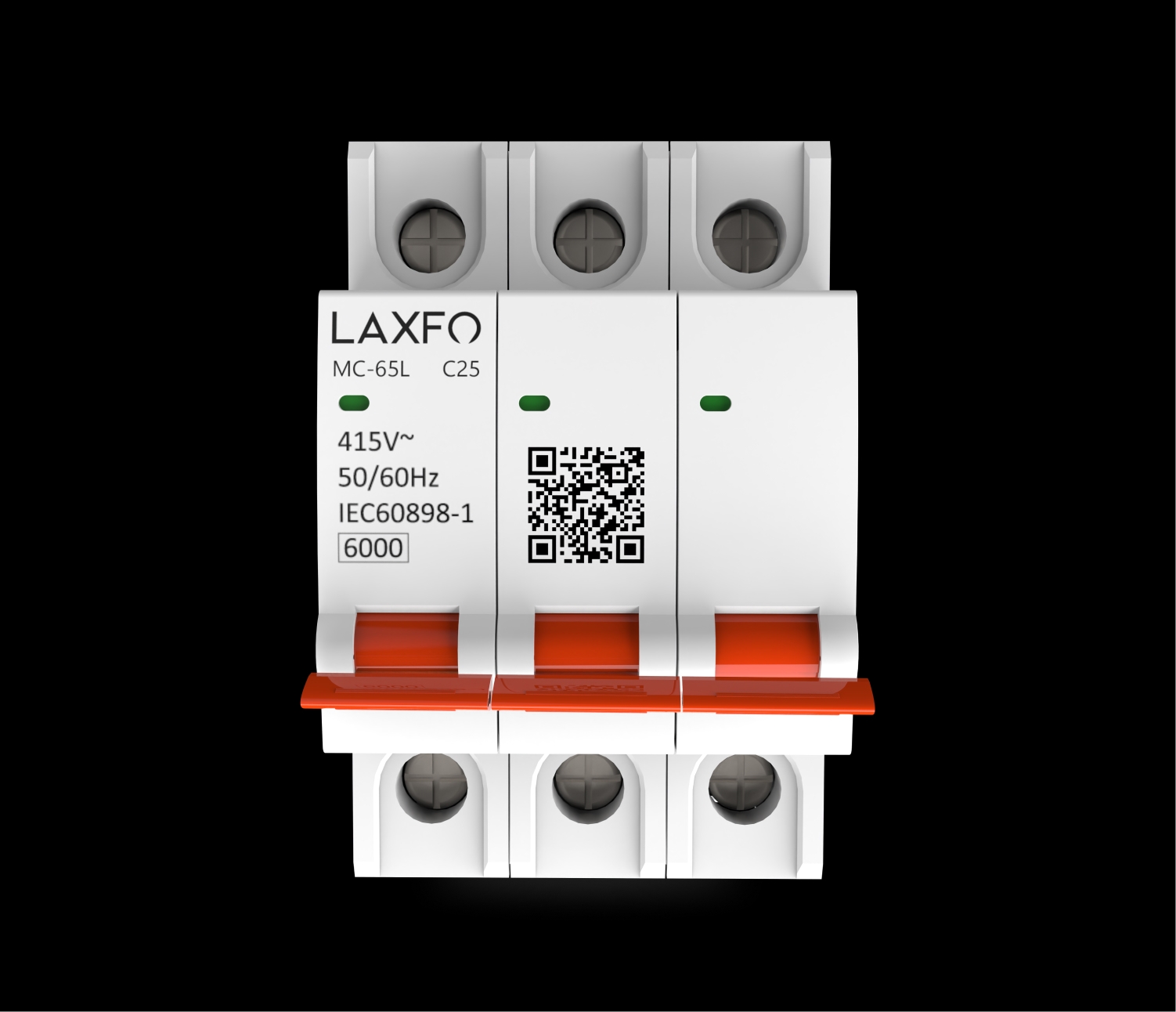

Triple Pole Circuit Breaker (TPC25-6 (25A,6KA))
Secure your electrical systems with our reliable Triple Pole Circuit Breaker. It delivers essential safety, guarding against overloads and short circuits while also providing dependable isolation and control. Engineered to high IEC standards, this 3-pole breaker ensures robust performance (6kA capacity) and durability. With a long operational life (10,000 electrical cycles) and IP20-rated protection, it delivers dependable performance. It is a high-value, lasting solution for managing and protecting your 230/400V AC systems effectively.
Price
Tk.675
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 25 A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 3 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
