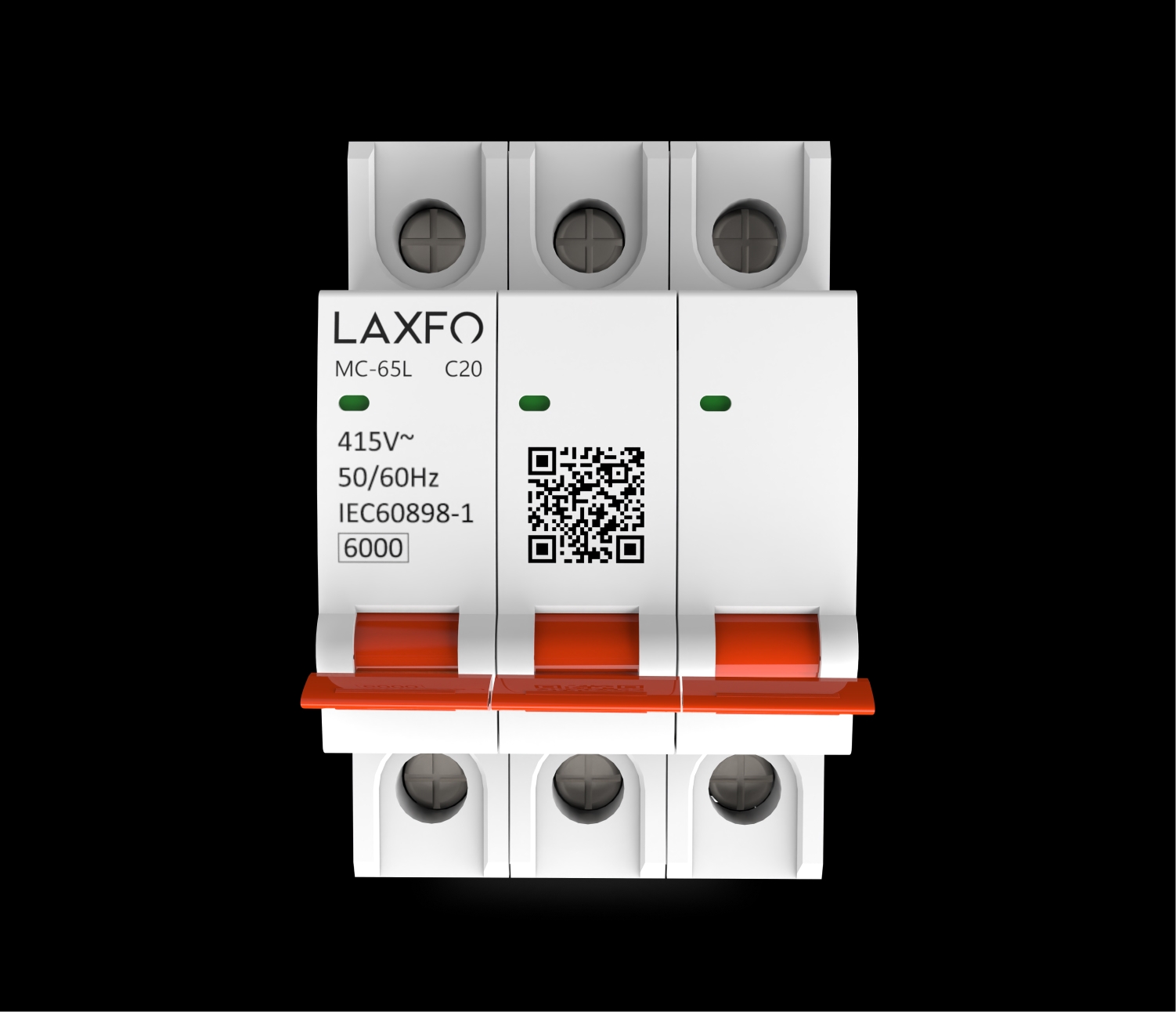

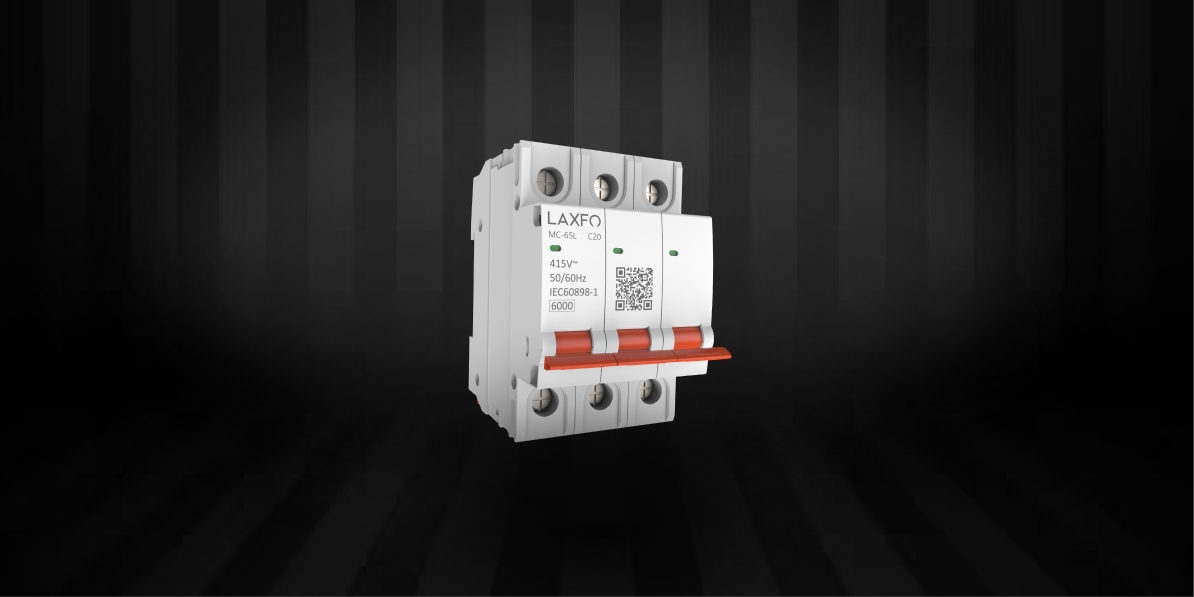

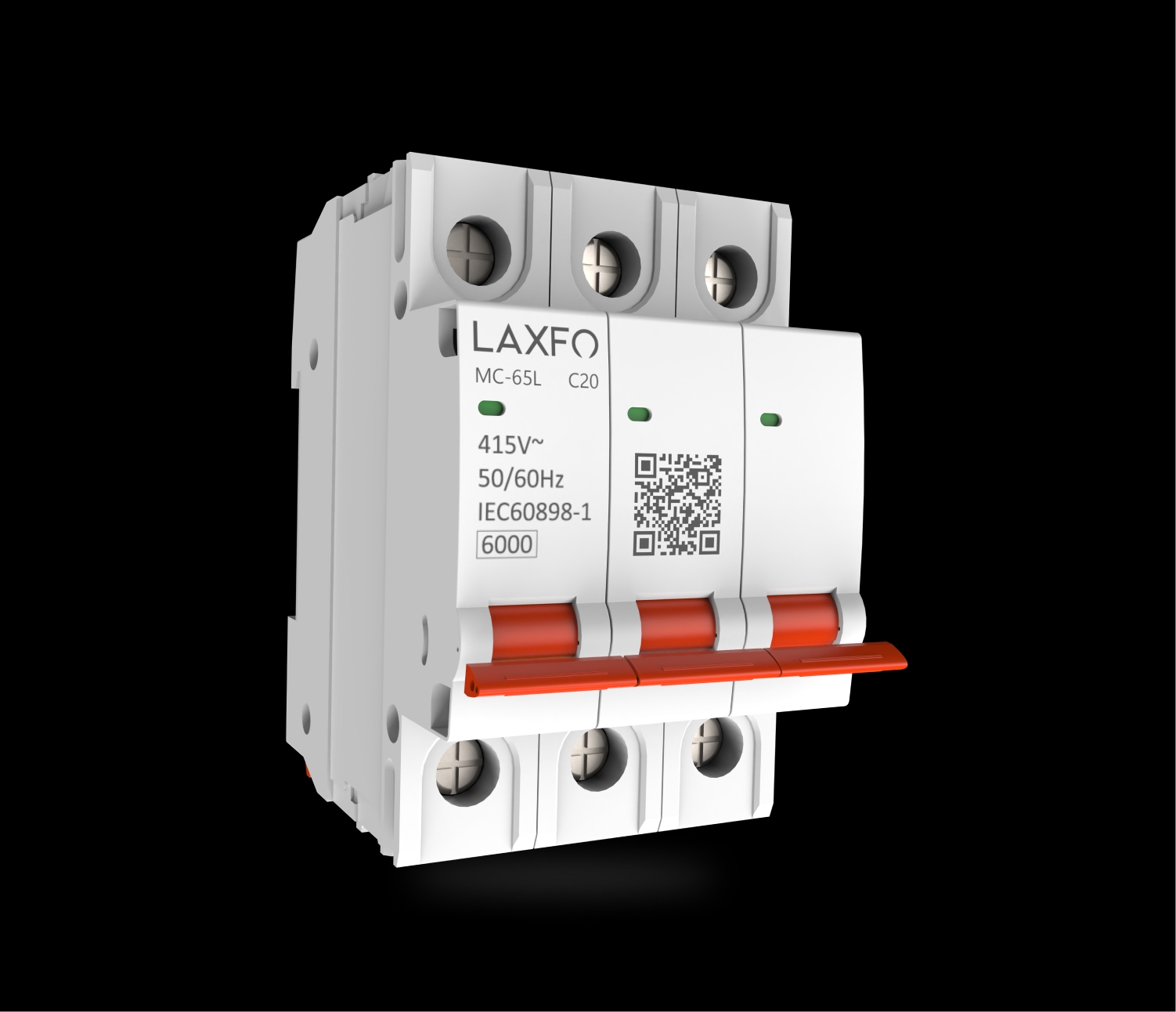

Triple Pole Circuit Breaker (TPC20-6 (20A,6KA))
Protect your valuable equipment with our high-performance Triple Pole Circuit Breaker, built for ultimate reliability in 230/400V AC systems. It delivers crucial overload and short circuit protection, ensuring system integrity and safety. This 20A breaker features a robust 6kA short-circuit capacity and superior 500V insulation, offering exceptional dependability. Certified to IEC 60898-1 standards and designed for 20,000 mechanical operations, it provides long-lasting peace of mind and precise control for demanding electrical installations.
Price
Tk.675
Specifications
| Rated voltage Un (VAC): | 230/400 VAC |
|---|---|
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 3 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
| Standards: | IEC 60898-1 |
| Rated current In (A): | 20 A |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
