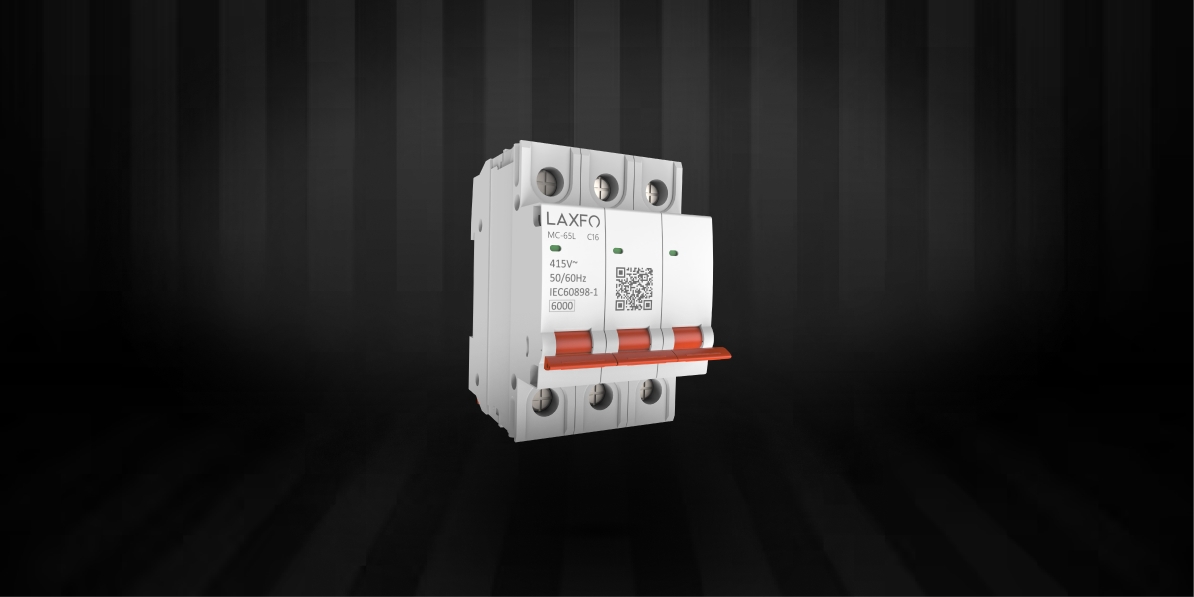

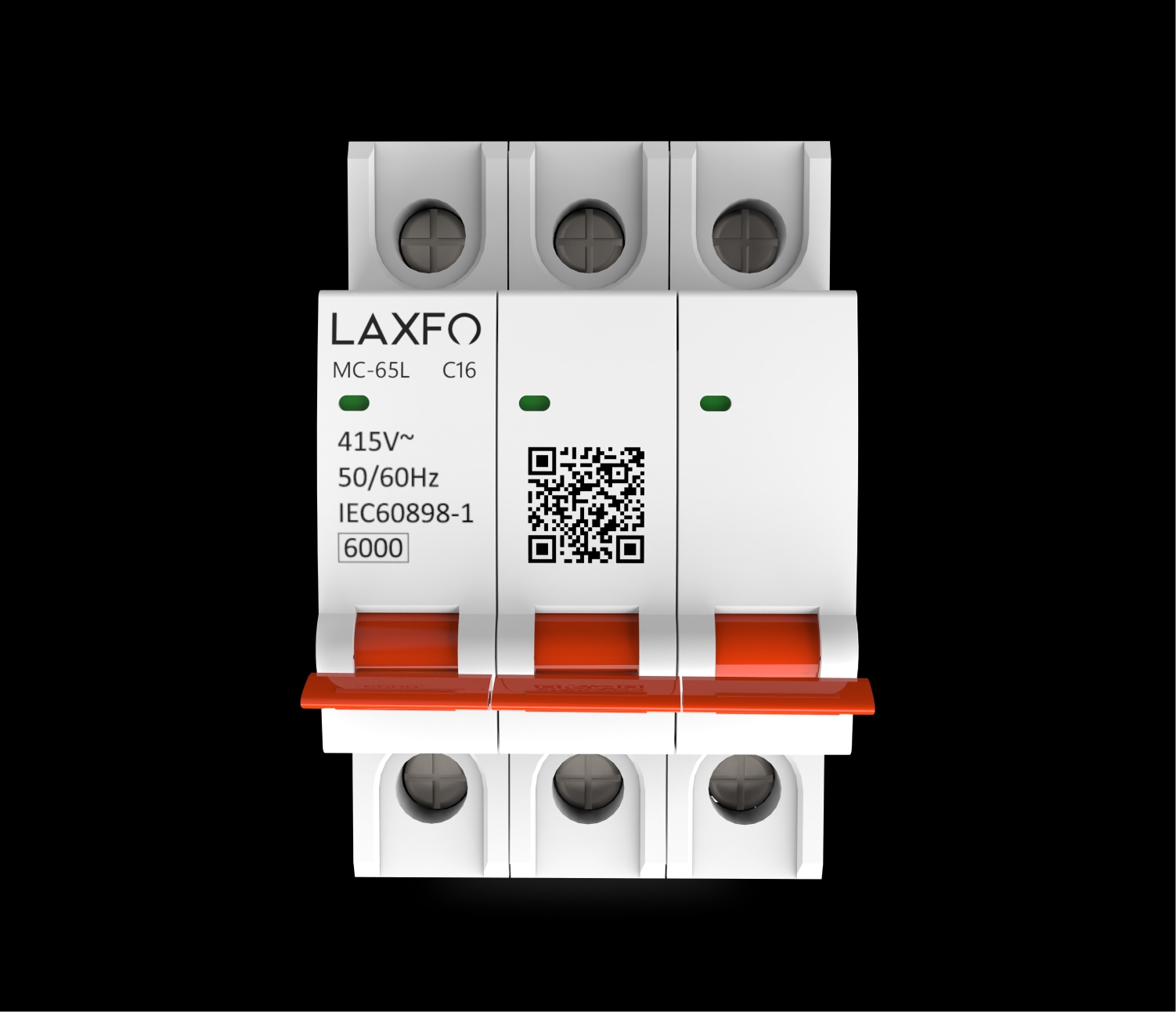

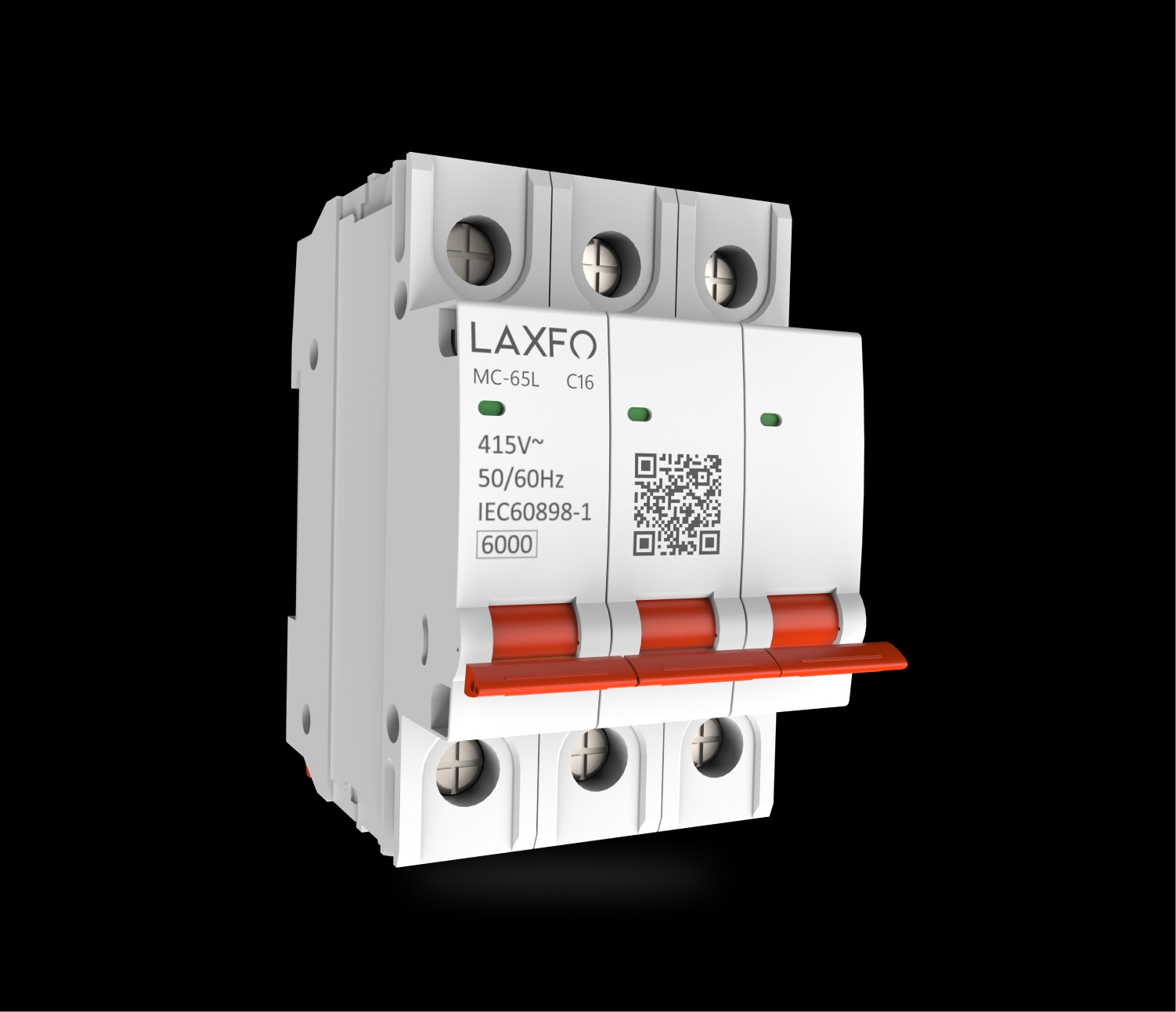

Triple Pole Circuit Breaker (TPC16-6 (16A,6KA))
The LAXFO Triple Pole Circuit Breaker adds a solid layer of safety to your power setup. It senses trouble like overloads or short circuits and shuts off power instantly to keep everything protected. Built strong and tested to global standards, it stands up to heat, wear, and time. Simple to mount and dependable in performance, it’s made for those who want safety without the fuss.
Price
Tk.675
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 16A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 3 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
