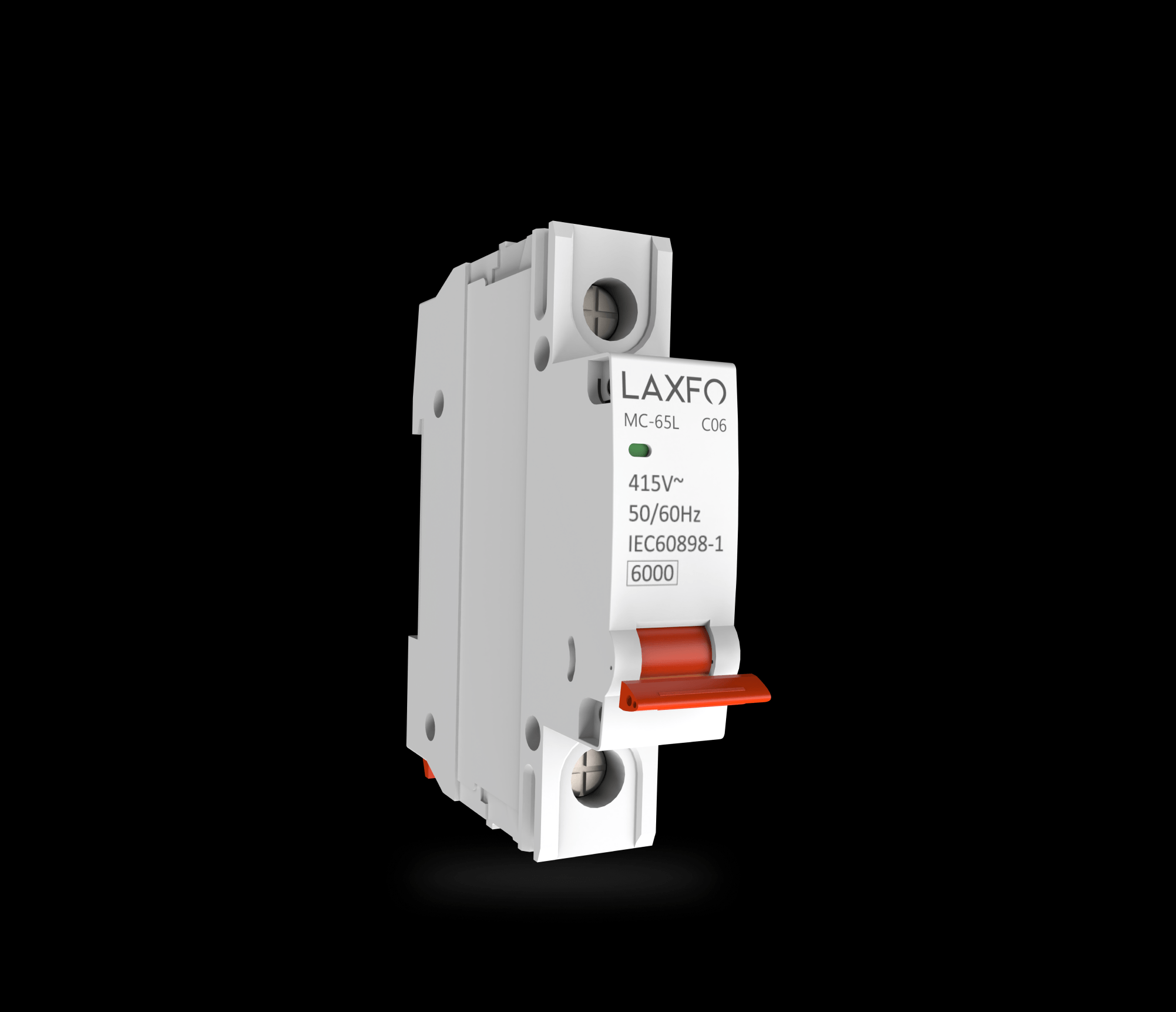

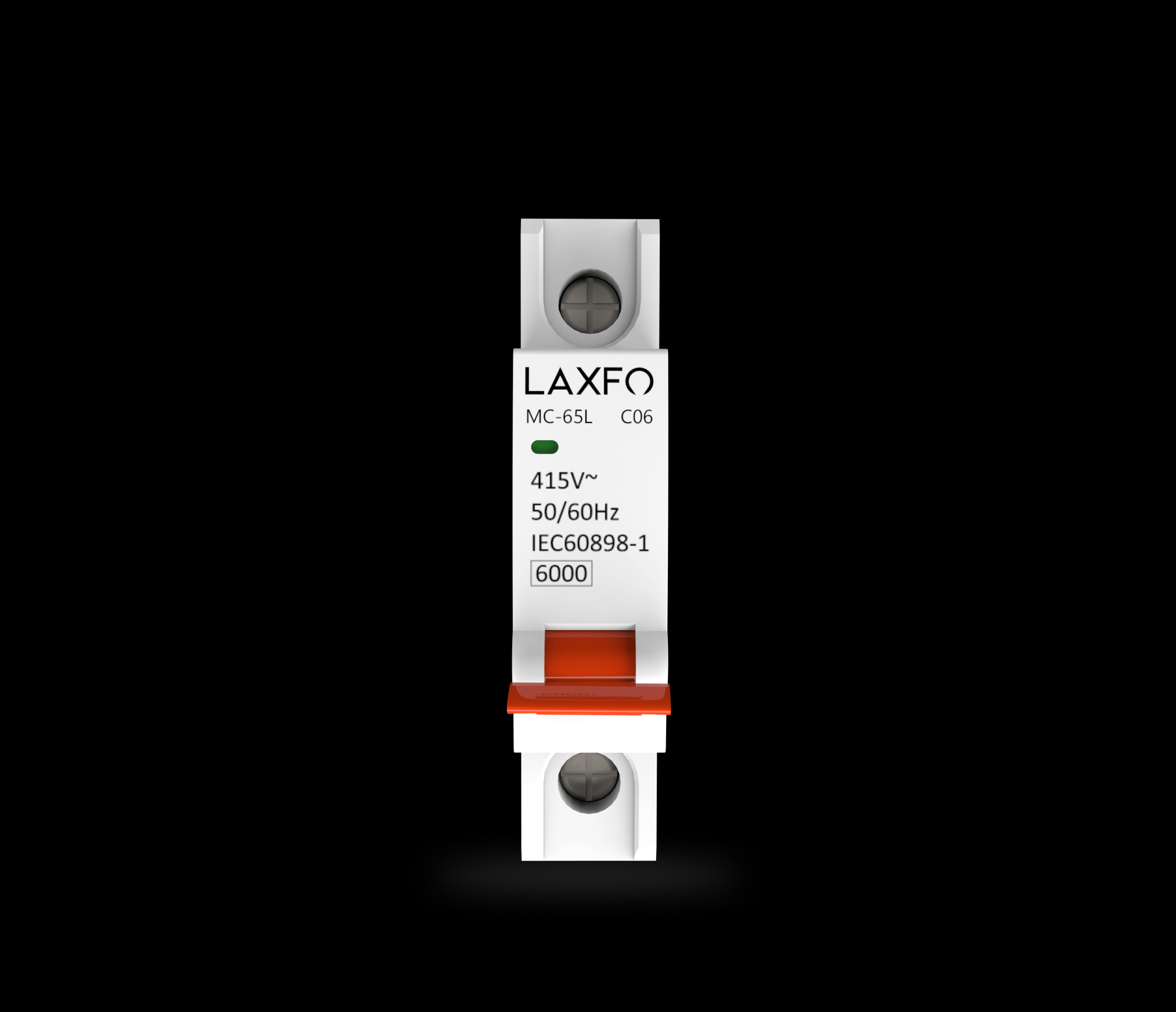

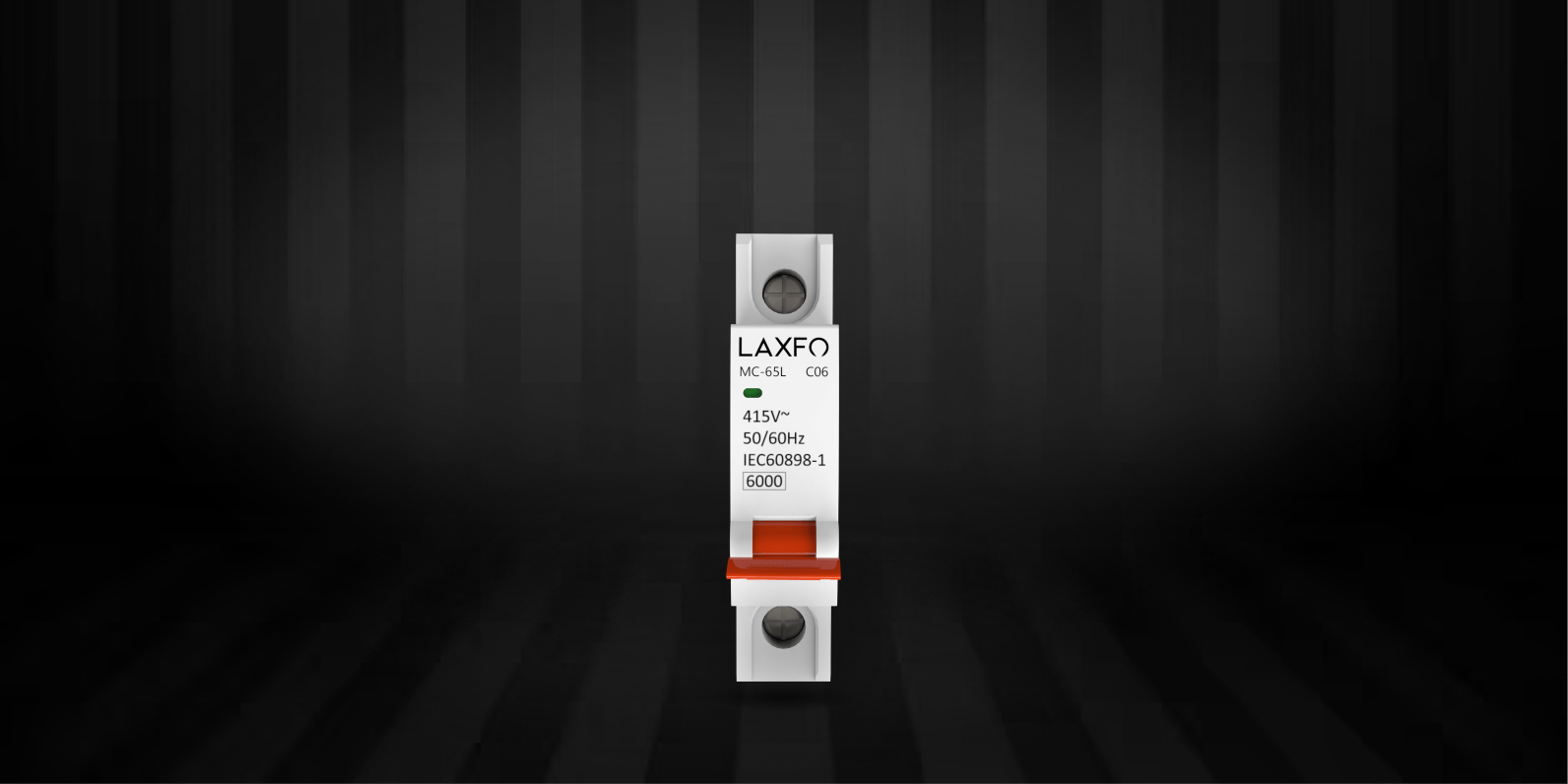

Single Pole Circuit Breaker (SPC6-6 (6A,6KA))
Ensure the safety and reliability of your electrical systems with our high-performance 6A Single-Pole Miniature Circuit Breaker (MCB). For just 225 Tk, this essential device provides robust protection against both overloads and short circuits, safeguarding your appliances and infrastructure. Engineered to meet the stringent IEC 60898-1 international standard, it features a 6kA short-circuit capacity, making it ideal for a wide range of applications. Its C-type tripping curve is perfectly suited for residential, commercial, and industrial loads. Built for exceptional durability, this MCB guarantees a long service life with 10,000 electrical and 20,000 mechanical operations. With superior features like V0 fire resistance and IP20 protection, it offers peace of mind. Whether for a new installation or an upgrade, this circuit breaker is the dependable choice for controlling and isolating your circuits safely and effectively.
Price
Tk.225
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 6 A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 1 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 - 1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
Overcurrent Protection
