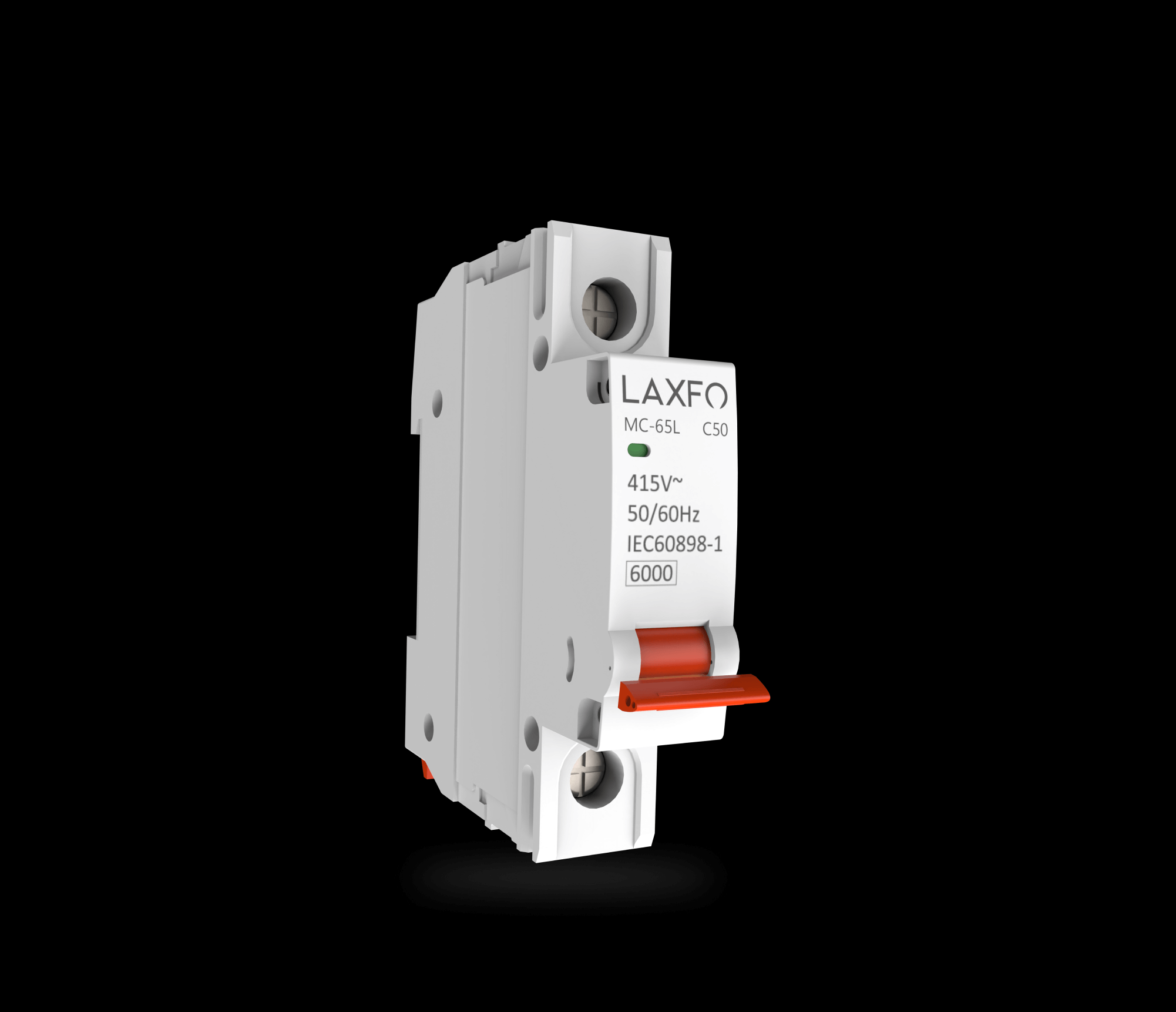

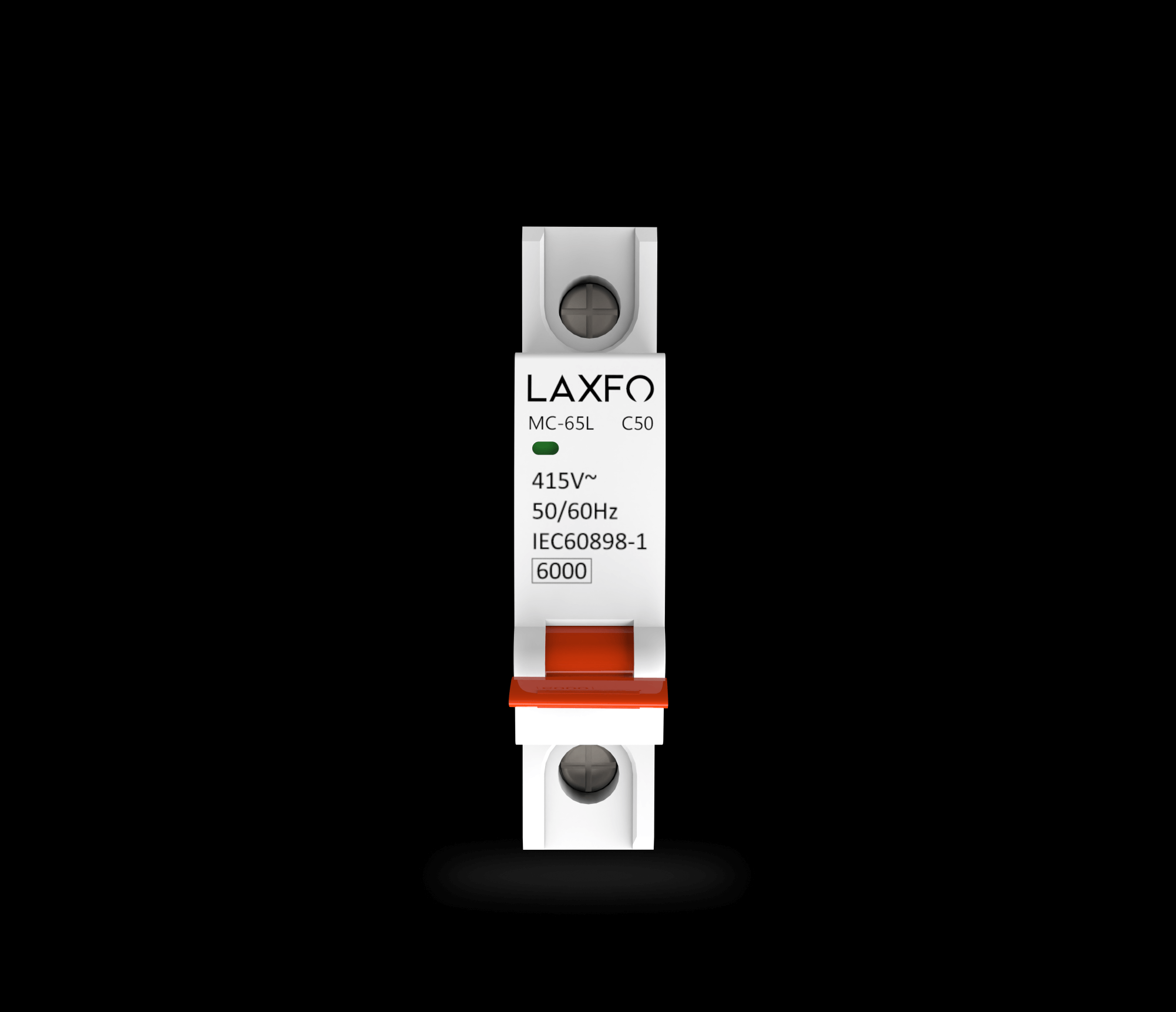

Single Pole Circuit Breaker (SPC50-6 (50A,6KA))
Introducing our reliable Single Pole Circuit Breaker, designed for essential electrical safety in homes and businesses. It provides robust overload and short circuit protection, along with isolation and control functions to prevent hazards. Compliant with IEC 60898-1 standards, it handles 50A rated current at 230/400V AC, with a 6KA short-circuit capacity and C tripping curve for quick response. Boasting IP20 protection, 10,000 electrical cycles, and fire-resistant V0 material, it's built for durability in any mounting position—ensuring peace of mind and seamless performance.
Price
Tk.245
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 50A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 1 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 - 1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
