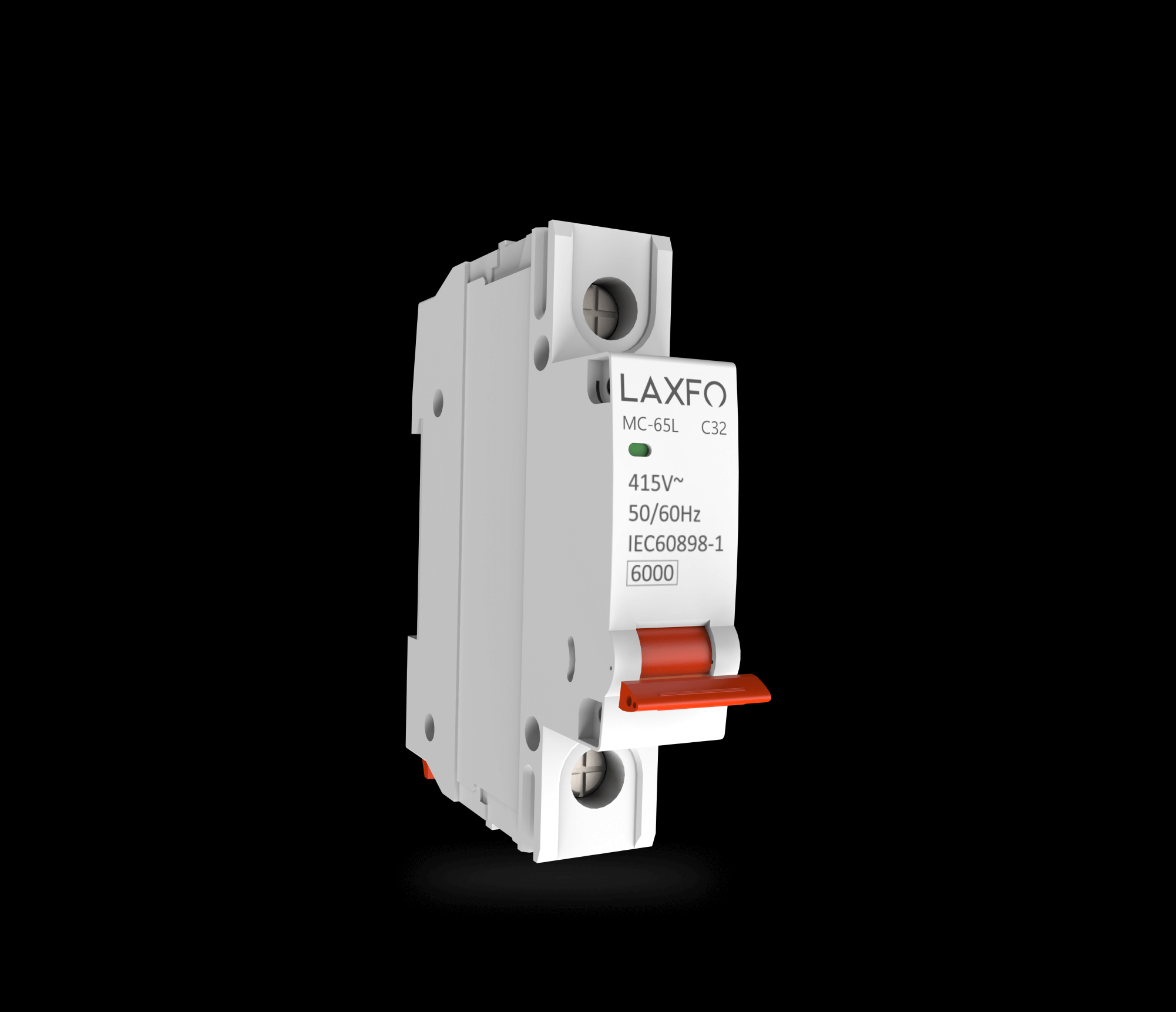

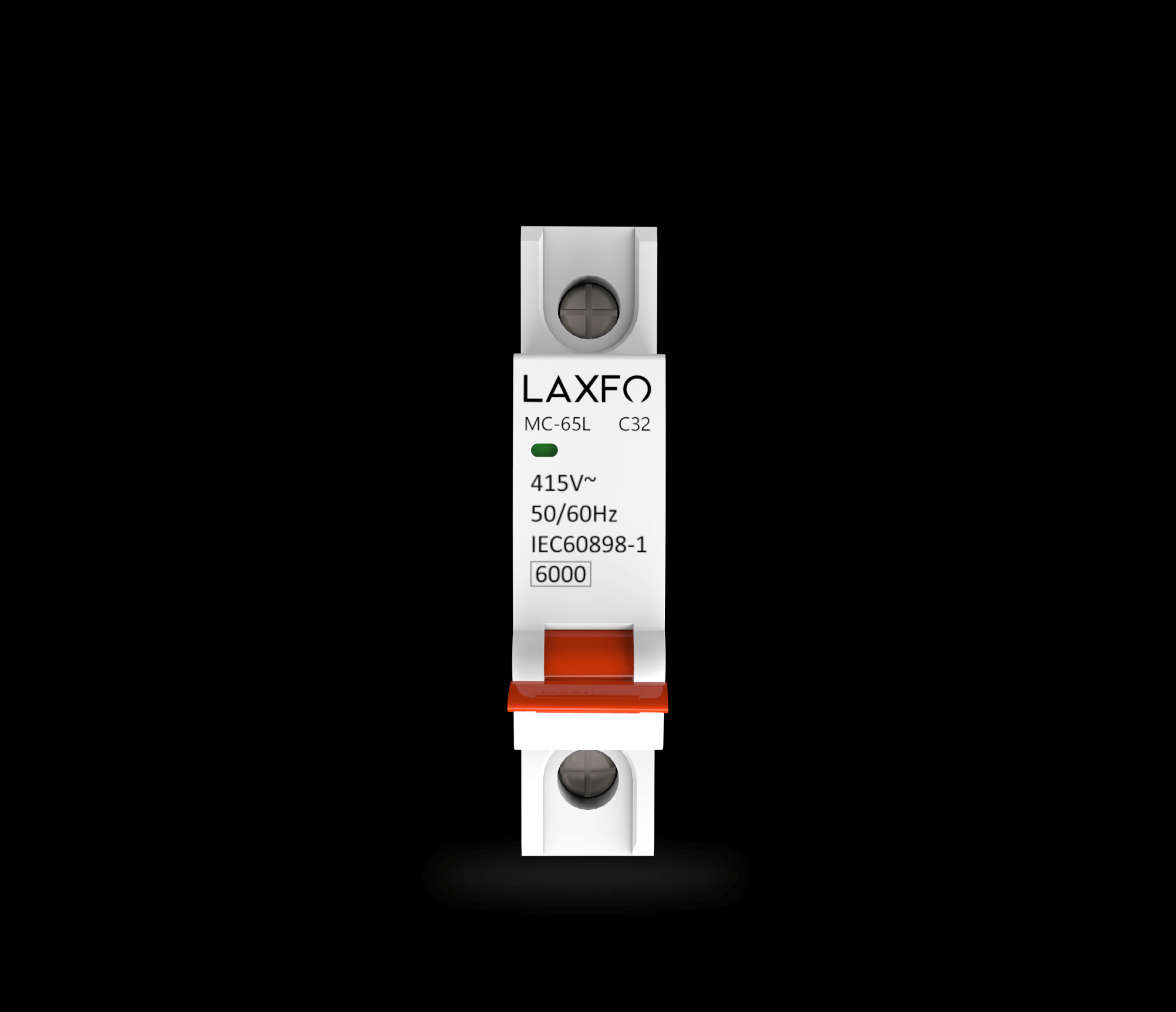

Single Pole Circuit Breaker (SPC32-6 (32A,6KA))
Keep your electrical system safe with the LAXFO Single Pole Circuit Breaker. It automatically disconnects during overloads or short circuits to prevent damage and ensure consistent performance. Designed for 32 amps and built under IEC 60898-1 standards, it offers strong protection with a 6-kA short-circuit capacity. Compact, durable, and easy to mount, it works reliably in both residential and commercial setups. Fire-resistant and long-lasting, it’s built for dependable everyday safety.
Price
Tk.245
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 32 A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 1 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 - 1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
