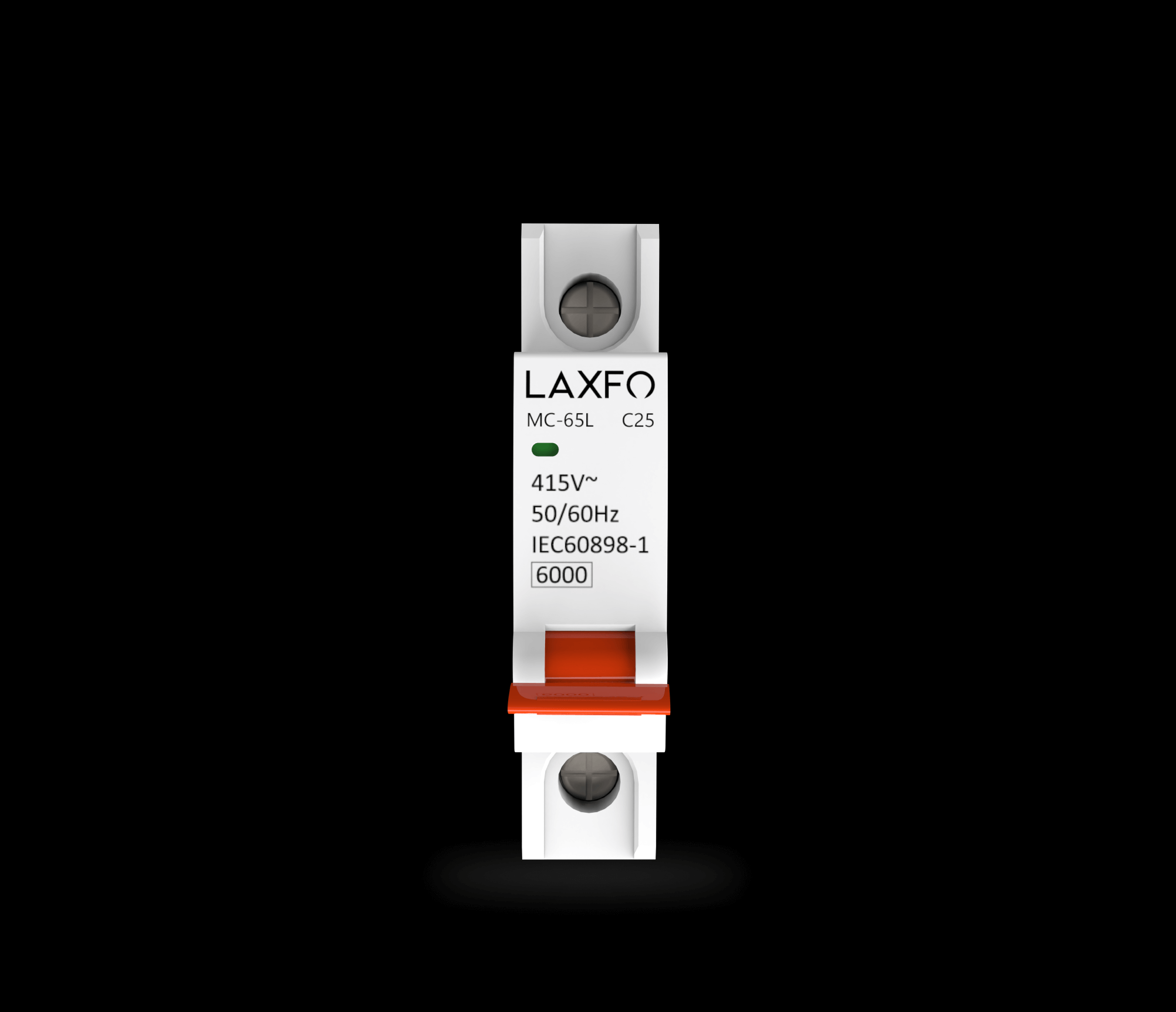

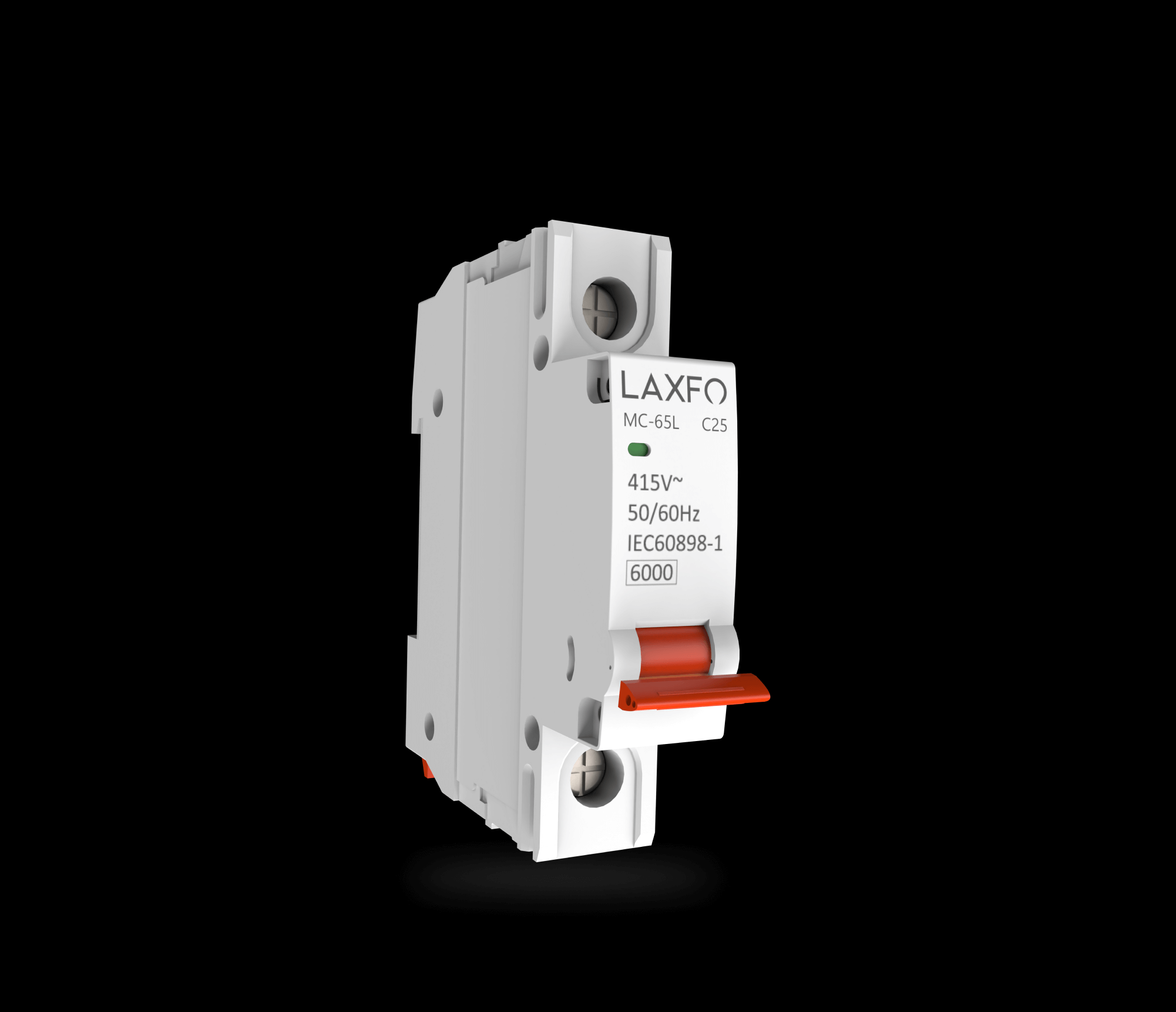

Single Pole Circuit Breaker (SPC25-6 (25A,6KA))
LAXFO Single Pole Circuit Breaker offers reliable protection for your electrical setup. Designed under IEC 60898-1 standards, it safeguards against overloads and short circuits while ensuring smooth power control. With a 25A rated current, 230/400V capacity, and IP20 protection, it performs safely in both homes and offices. Built for durability with 10,000 electrical and 20,000 mechanical cycles, this fire-resistant breaker ensures long-lasting performance and peace of mind in every connection.
Price
Tk.225
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 25 A |
| Rated voltage Un (VAC): | 230/400 V AC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 1 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 - 1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
