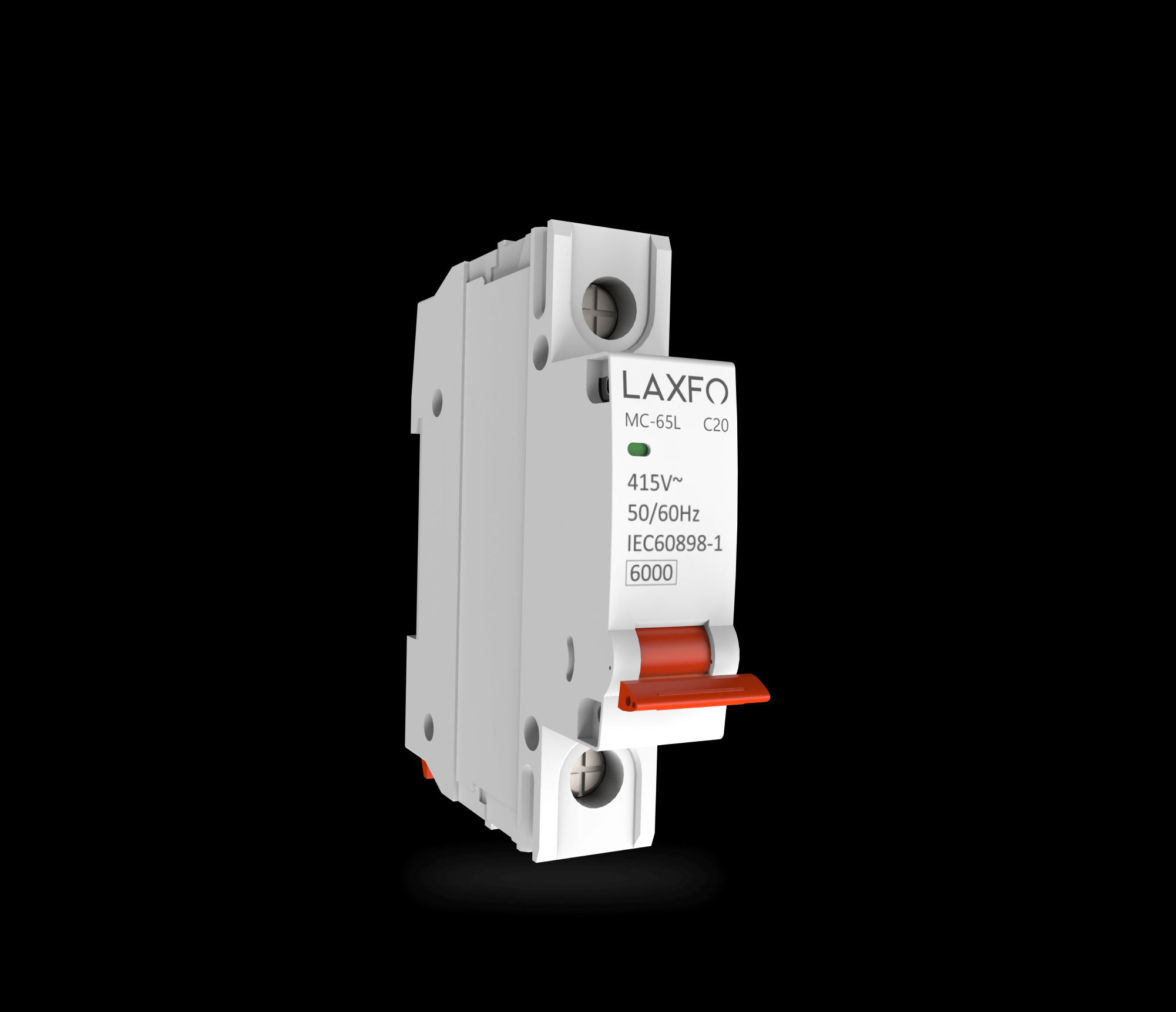

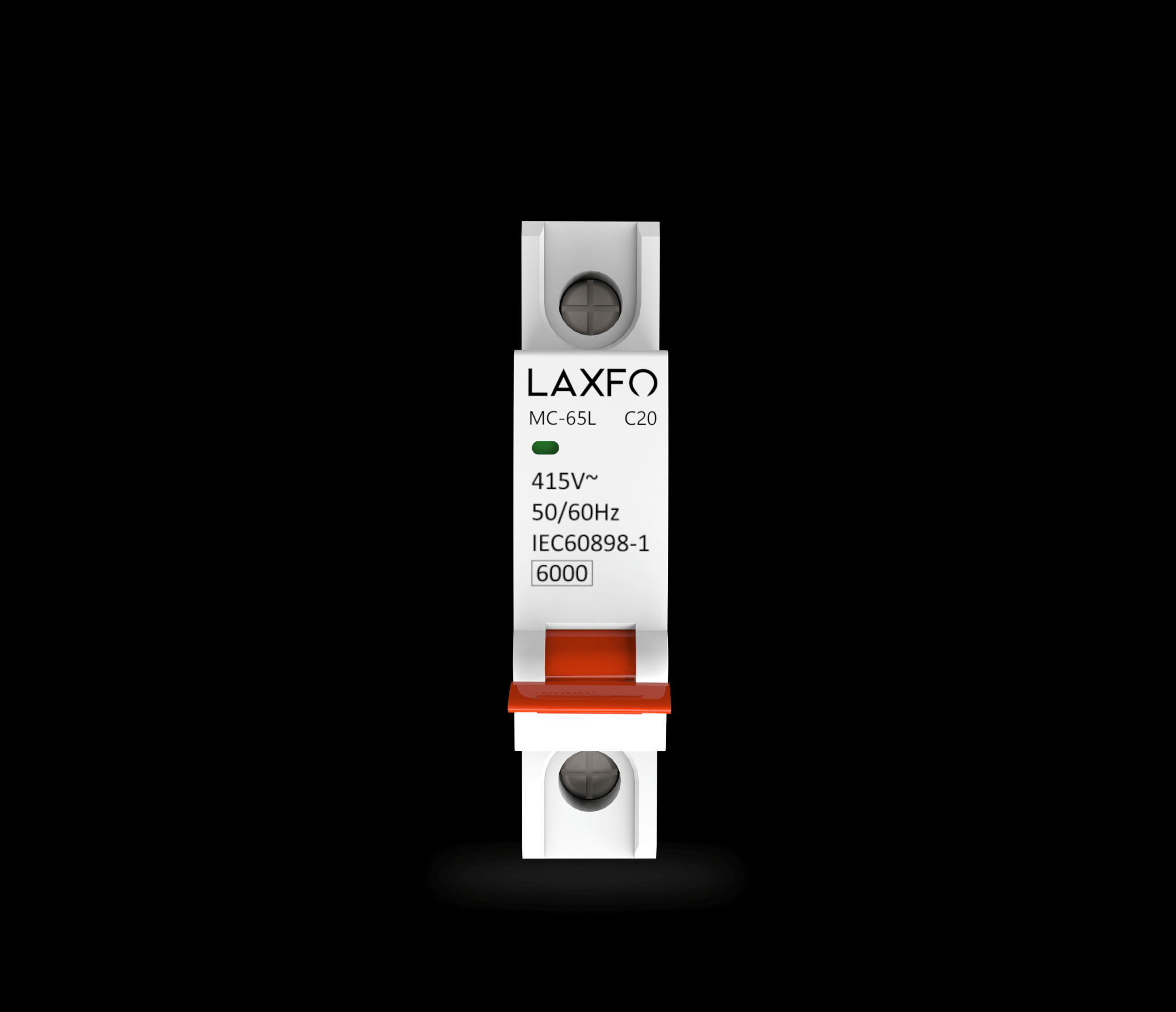

Single Pole Circuit Breaker (SPC20-6 (20A,6KA))
Keep your wiring safe with our Single Pole Circuit Breaker. It automatically cuts power during overloads and short circuits to prevent damage and reduce fire risk. Use it for lighting, small appliances, and general circuits at home or in small offices. Simple on off control lets you isolate a line for quick maintenance. Built for reliable, long service with fire resistant materials and smooth operation.
Price
Tk.225
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 20 A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 1 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 - 1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
