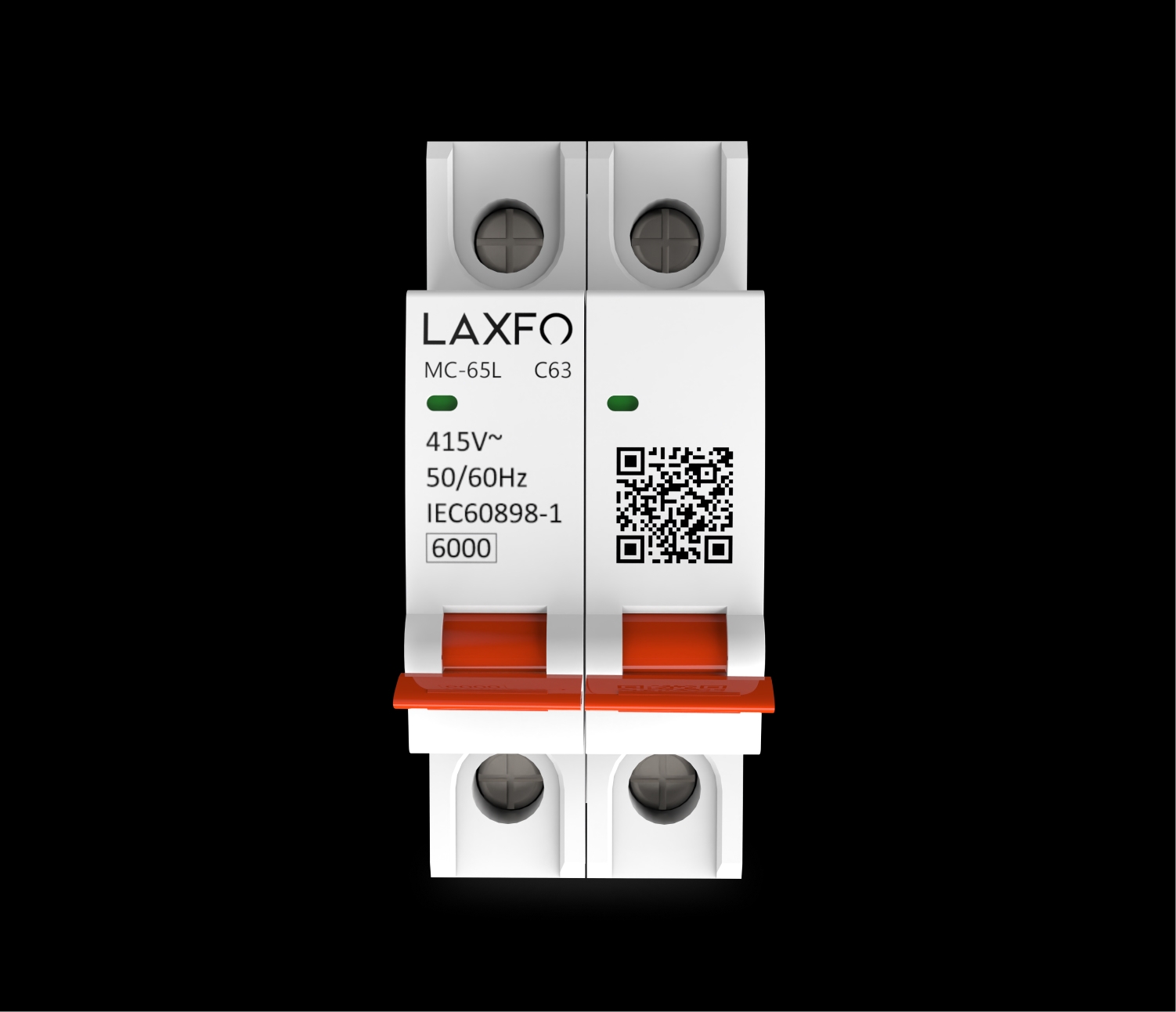

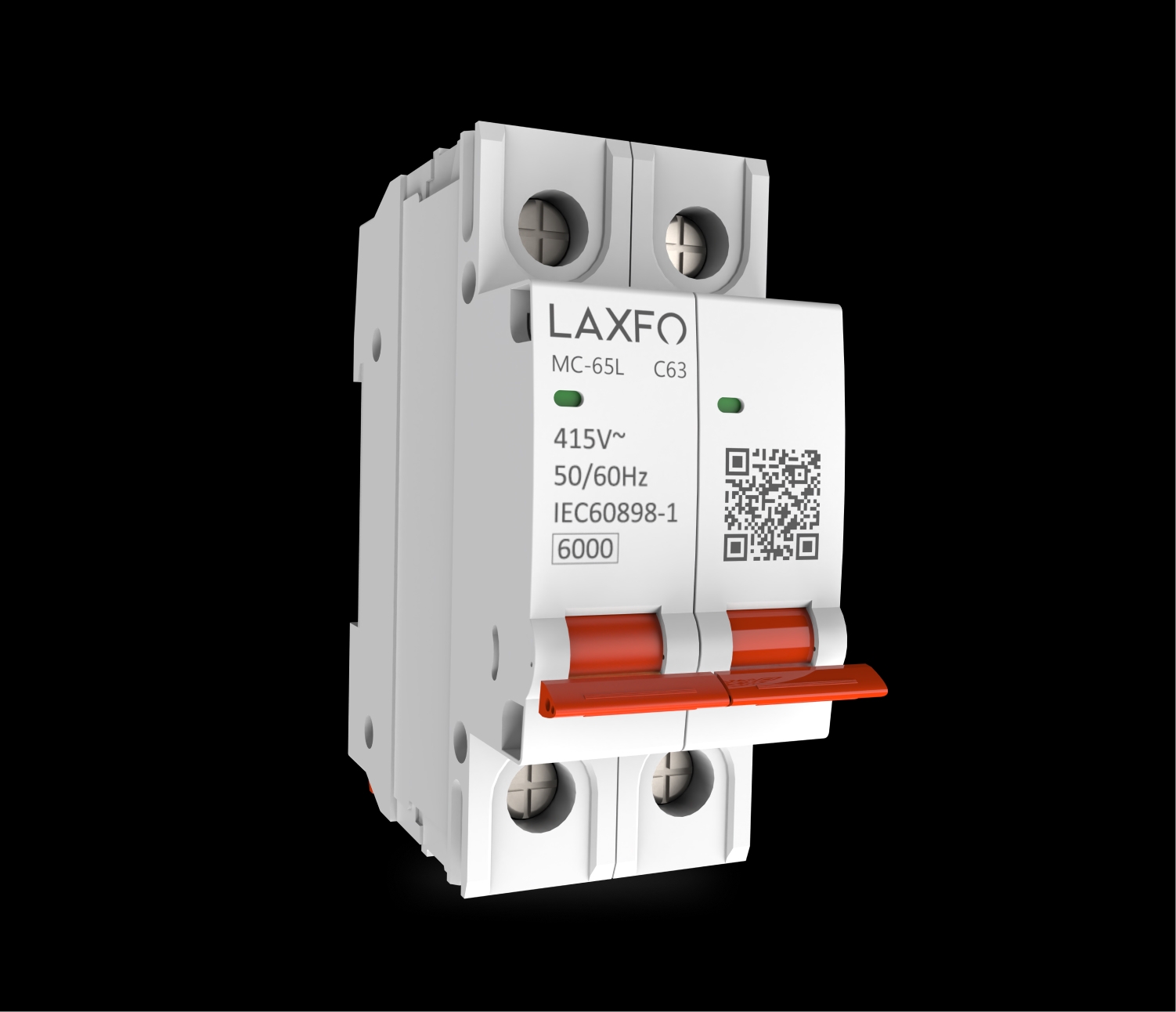

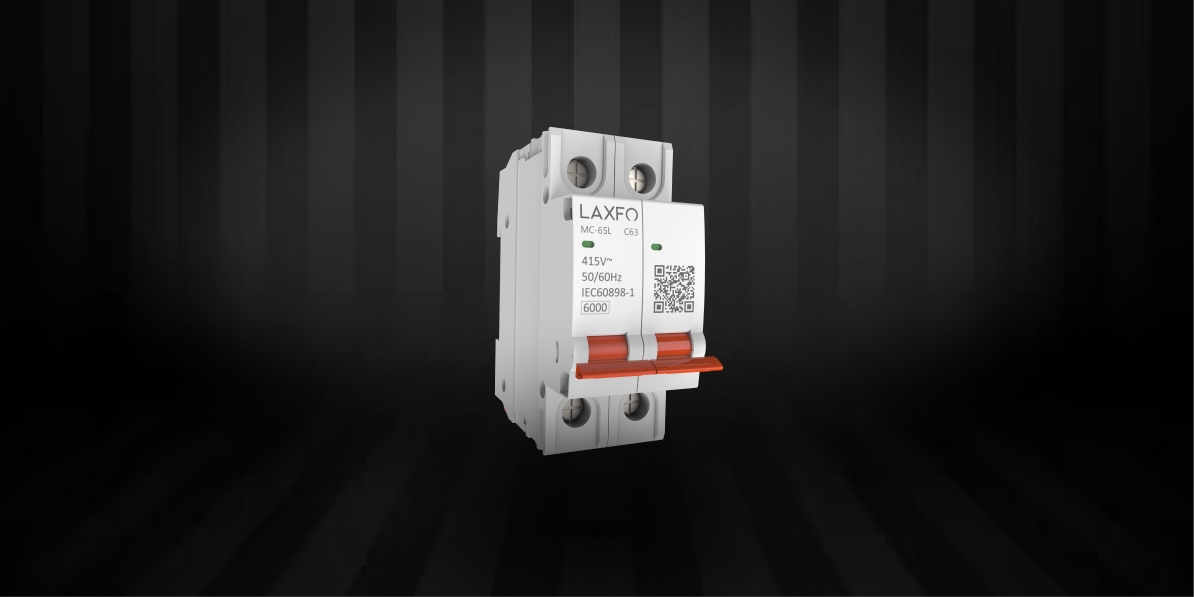

Double Pole Circuit Breaker (DPC63-6 (63A,6KA))
Price
Tk.450
Specifications
| Standards: | IEC 60898-1 |
|---|
| Rated current In (A): | 63A |
|---|
| Rated voltage Un (VAC): | 230/400 VAC |
|---|
| Rated frequency (Hz): | 50/60 Hz |
|---|
| Rated impulse withstand voltage (Uimp): | 4KV |
|---|
| Rated short-circuit capacity (A): | 6 KA |
|---|
| Rated insulation voltage (VAC): | 500 V |
|---|
| Number of poles: | 2 |
|---|
| Tripping Curve: | C |
|---|
| Thermal operating limit (In): | 1.13 -1.45xIn |
|---|
| Degree of protection: | IP20, with connected conductors |
|---|
| Electrical life (times): | 10,000 |
|---|
| Mechanical life (times): | 20,000 |
|---|
| Mounting position: | Any |
|---|
| Fire resistance according to UL 94: | V0 |
|---|
