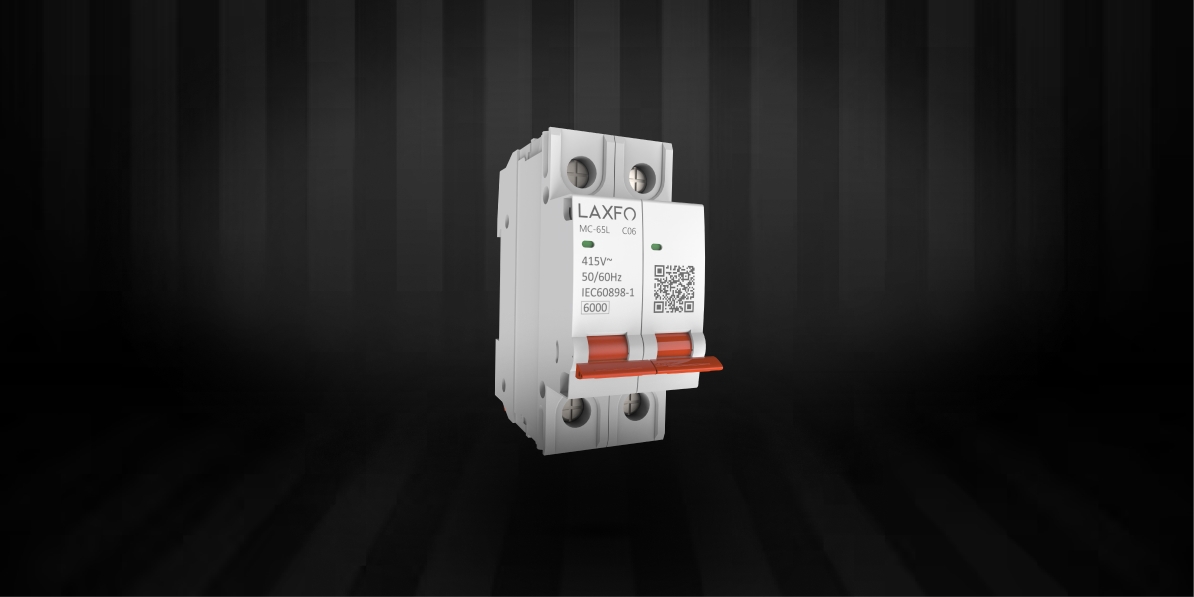

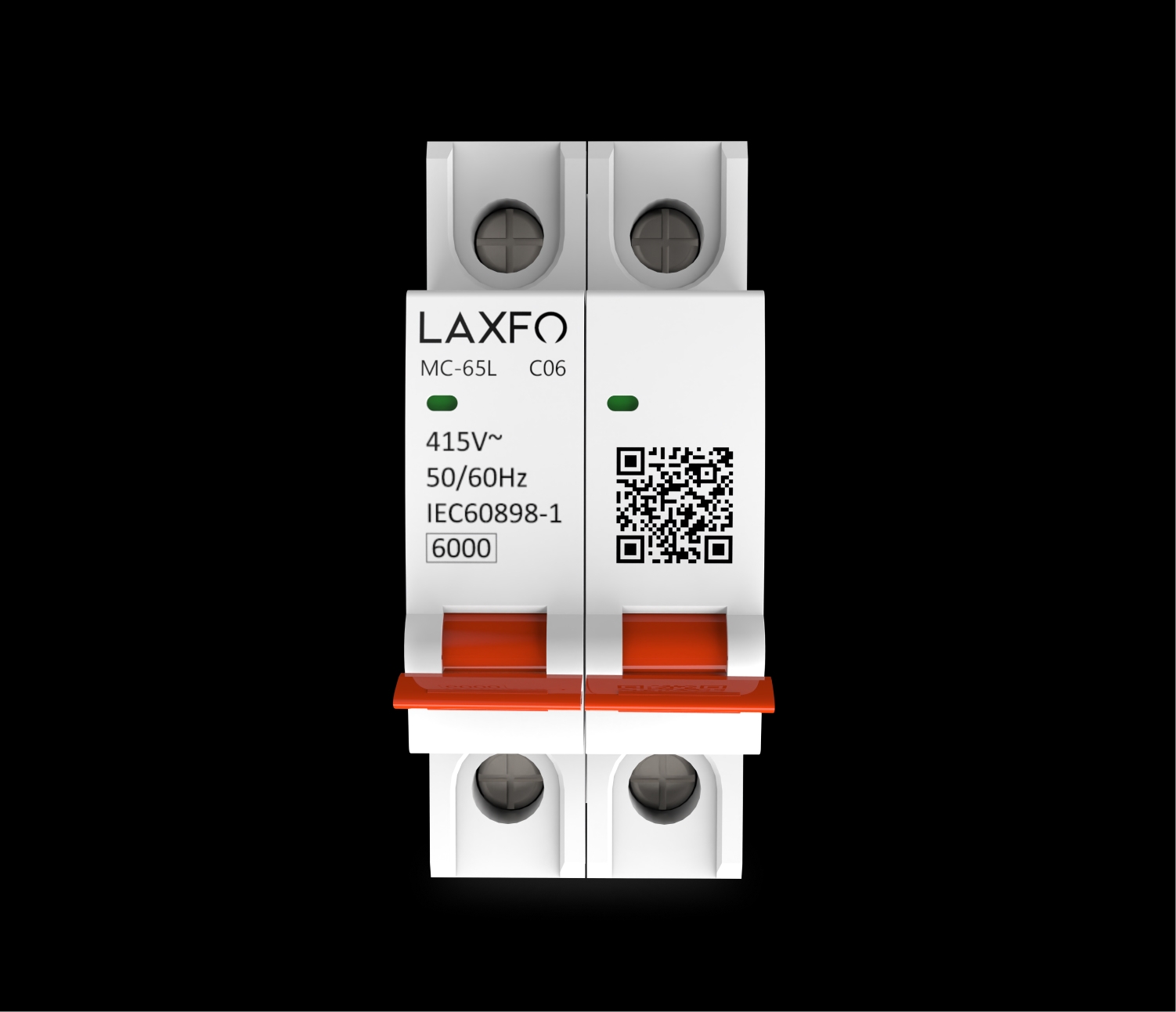

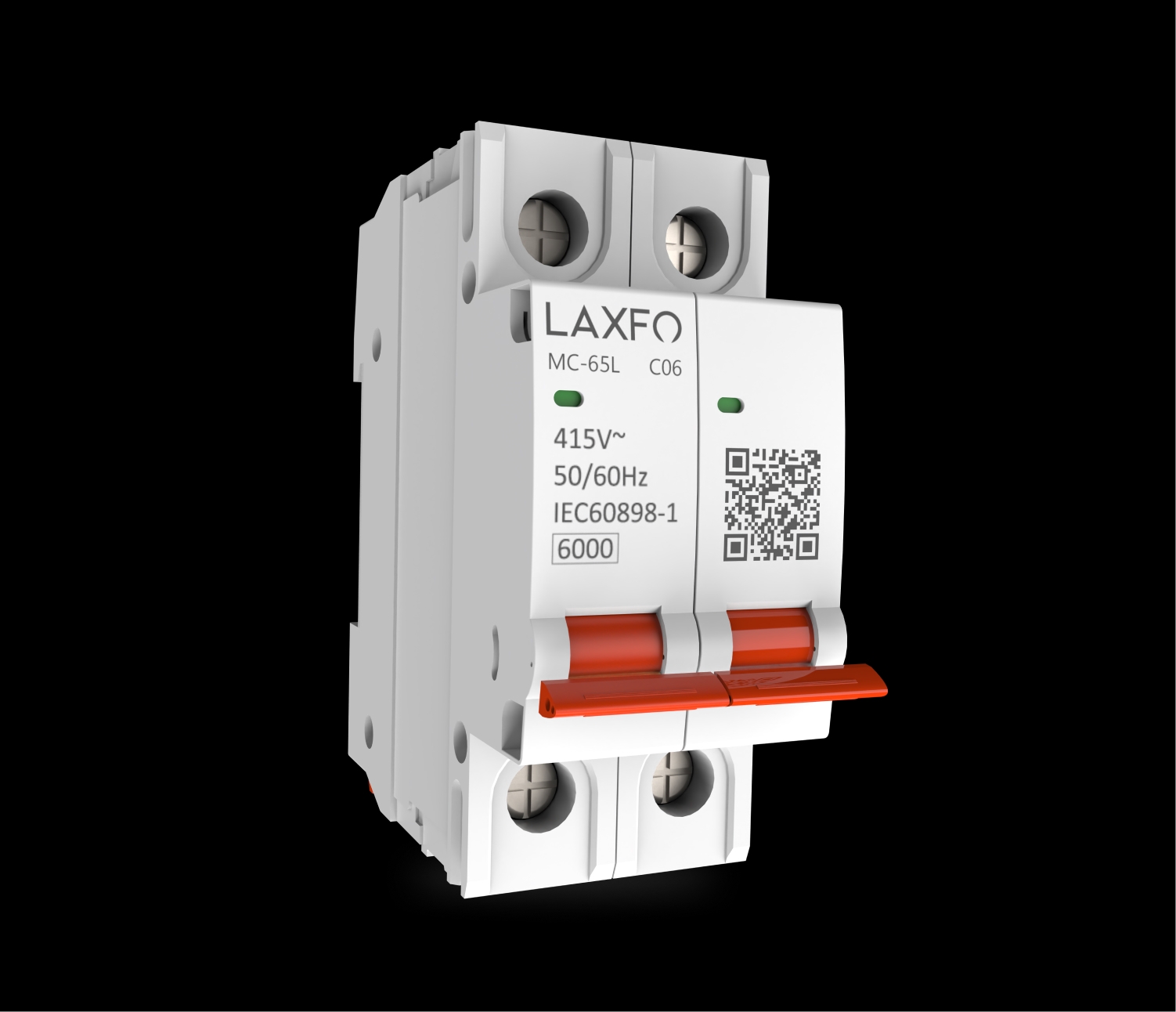

Double Pole Circuit Breaker (DPC6-6 (6A,6KA))
Our Double Pole Circuit Breaker adds complete safety to your electrical setup and keeps you worry-free. It quickly disconnects power during overloads or short circuits to protect your system. With a rated capacity of 6 amps and compatibility with 230/400 volts, it’s ideal for both homes and offices. Its IP20 rating ensures protection against dust and accidental touch. With LAXFO circuit breakers, you stay protected from electrical hazards year after year.
Price
Tk.450
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 6 A |
| Rated voltage Un (VAC): | 230/400 V AC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 2 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
