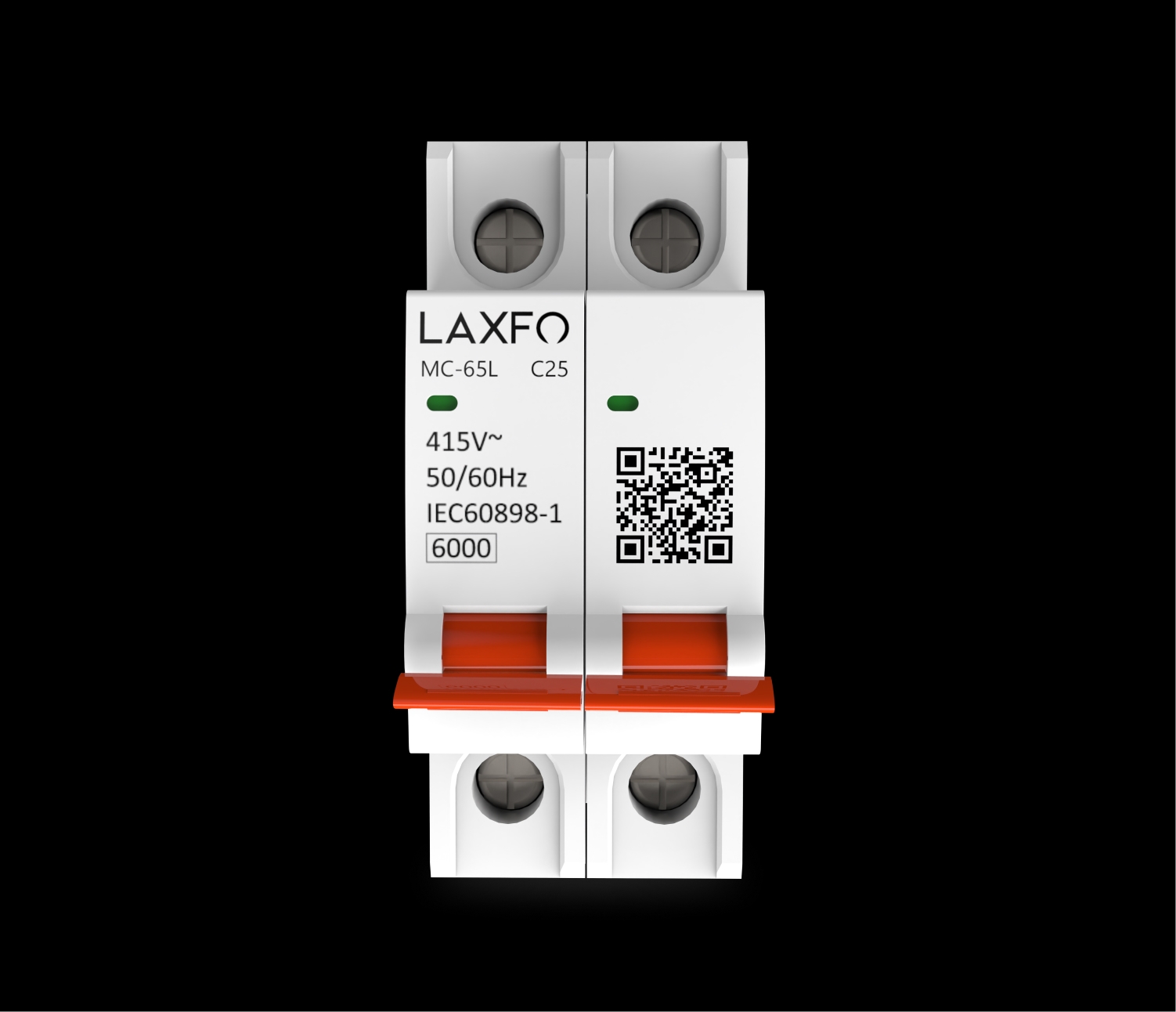

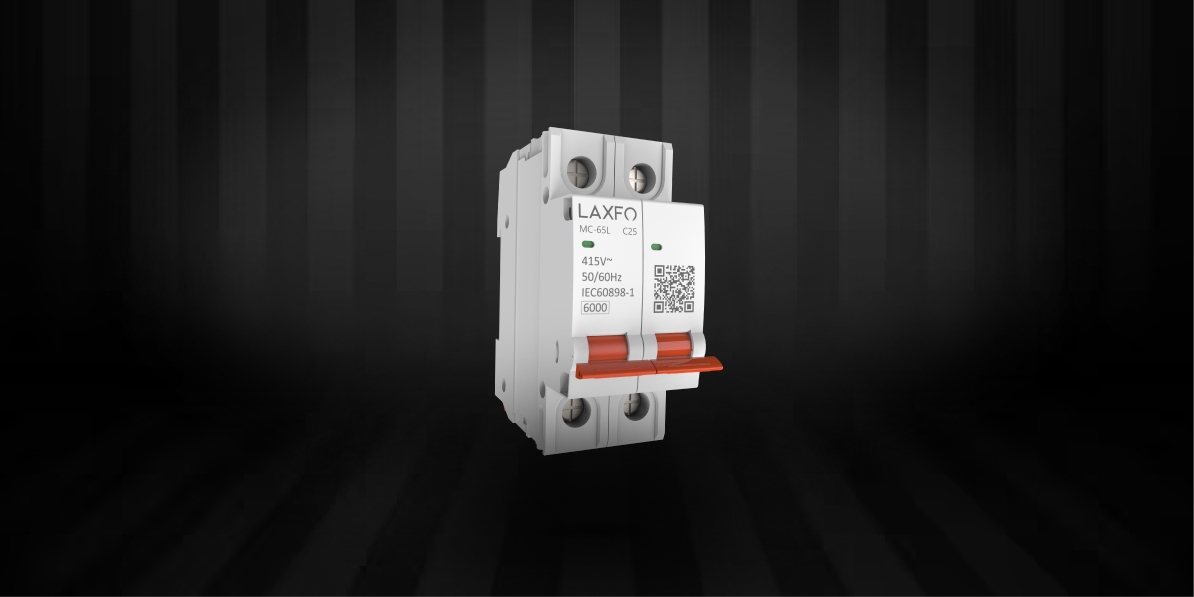

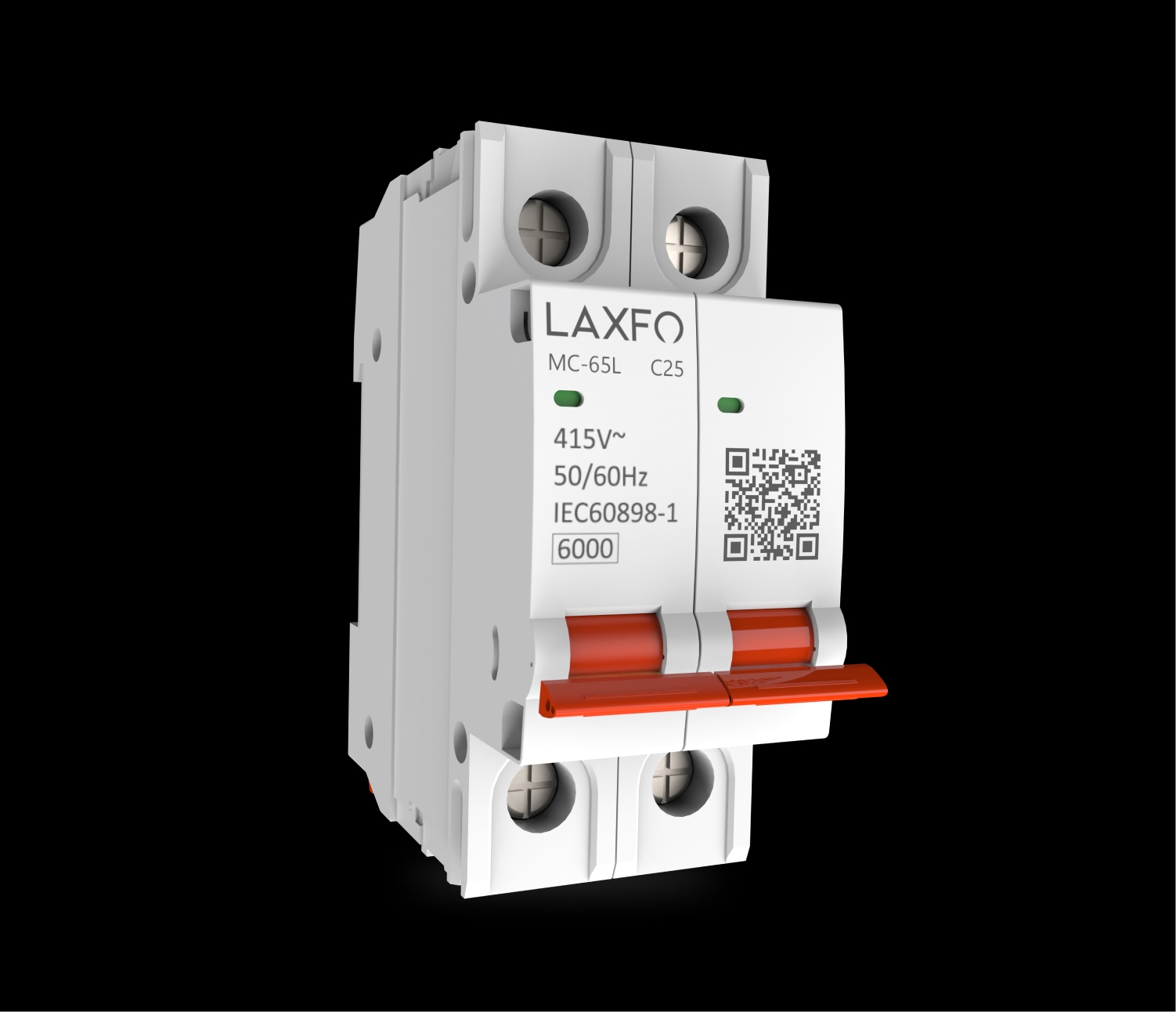

Double Pole Circuit Breaker (DPC25-6 (25A,6KA))
Safeguard your electrical systems with this robust double pole circuit breaker, designed for seamless overload and short-circuit protection. It isolates faults instantly and offers precise control, ensuring uninterrupted power flow in homes or offices. Compliant with IEC 60898-1 standards, it handles 25A at 230/400V AC, with a 6kA short-circuit capacity for ultimate safety. Featuring a C tripping curve and IP20 protection, it's built to last up to 20,000 mechanical cycles and mounts anywhere for hassle-free installation.
Price
Tk.450
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 25A |
| Rated voltage Un (VAC): | 230/400 VAC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 2 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
Fire-Resistant Housing
Reliable Trip Mechanism
