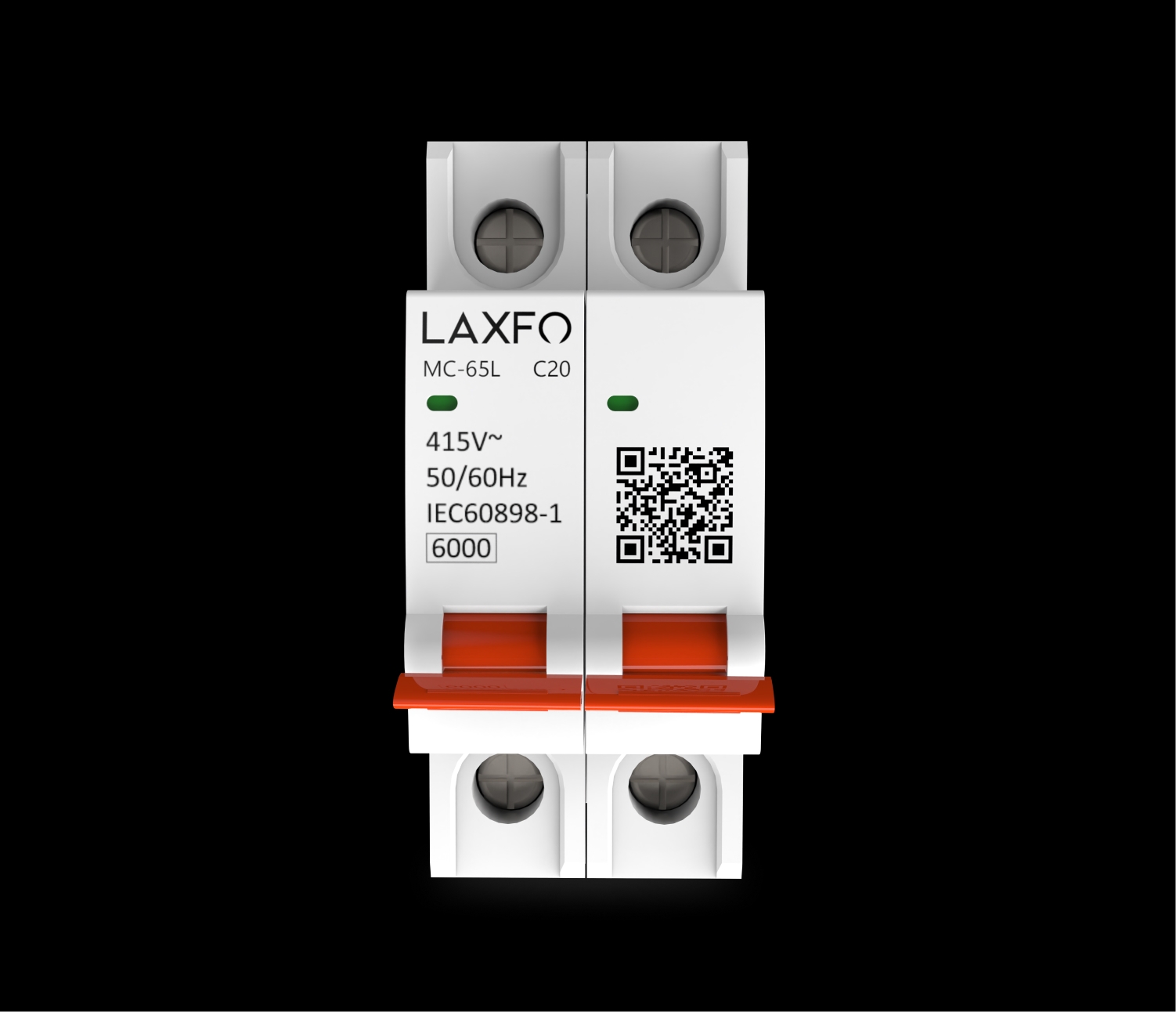

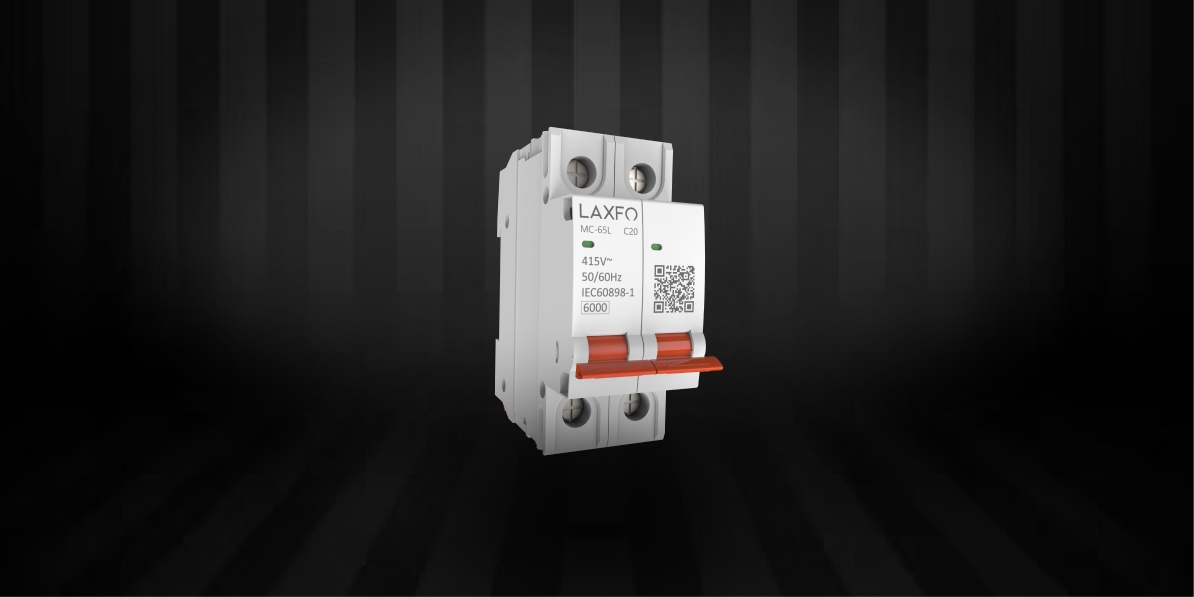

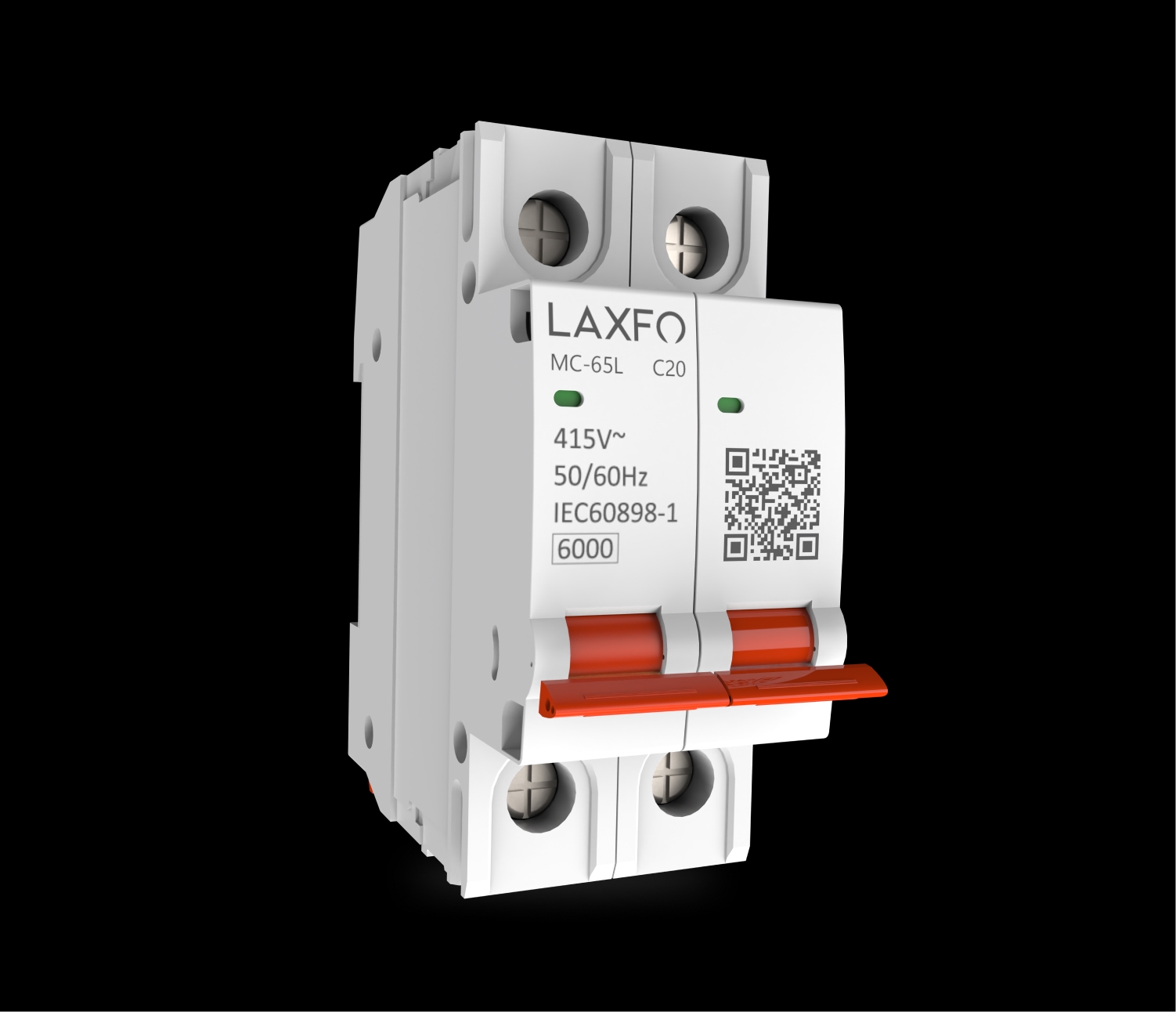

Double Pole Circuit Breaker (DPC20-6 (20A,6KA))
The LAXFO Double Pole Circuit Breaker protects your home or workplace from electrical faults. It reacts quickly to overloads or short circuits and helps you safely switch power when needed. Built to international standards, it’s durable, fire-resistant, and easy to install. A practical choice for anyone who wants lasting safety and steady performance.
Price
Tk.450
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 20A |
| Rated voltage Un (VAC): | 230/400 V AC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 2 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
