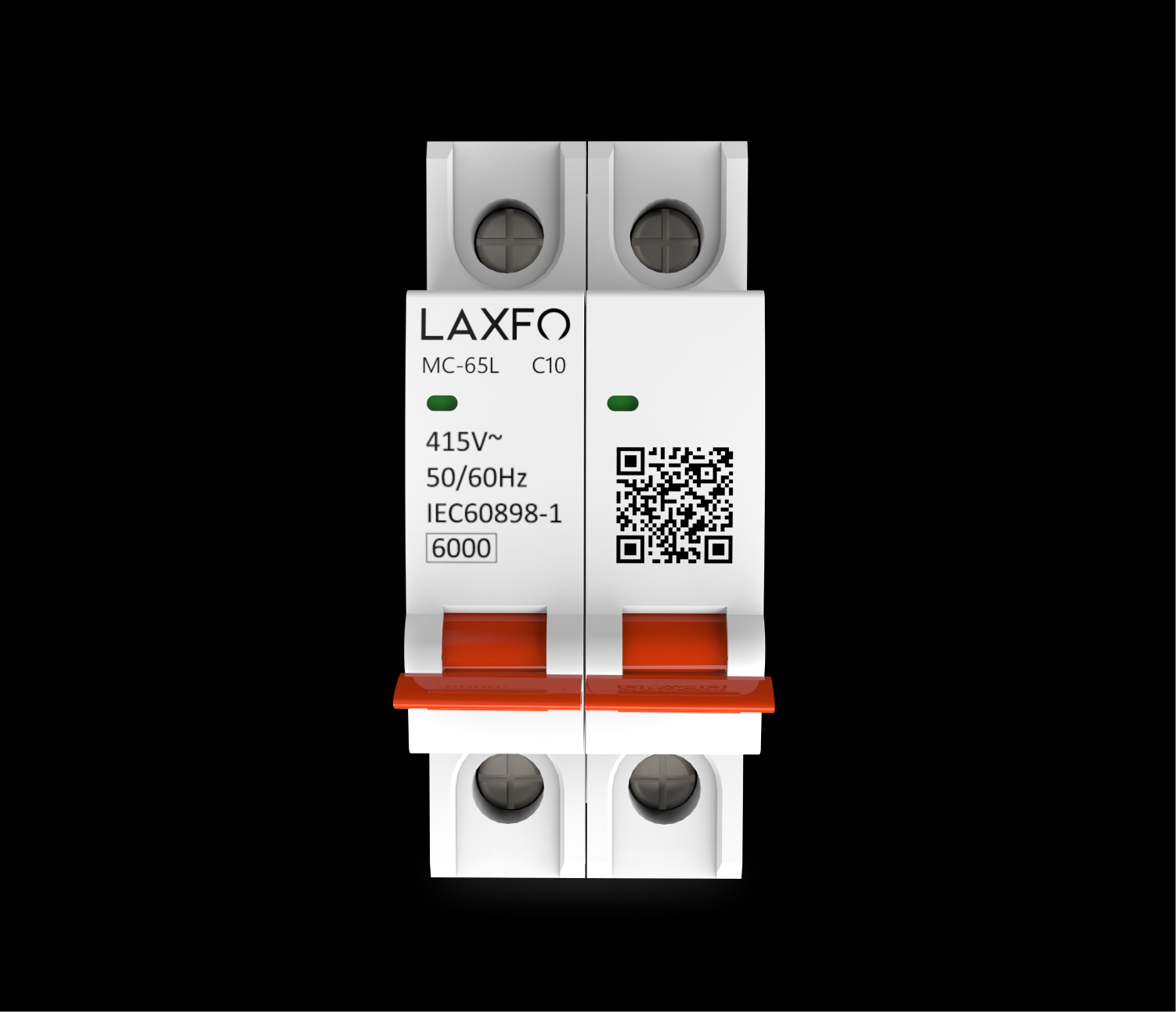

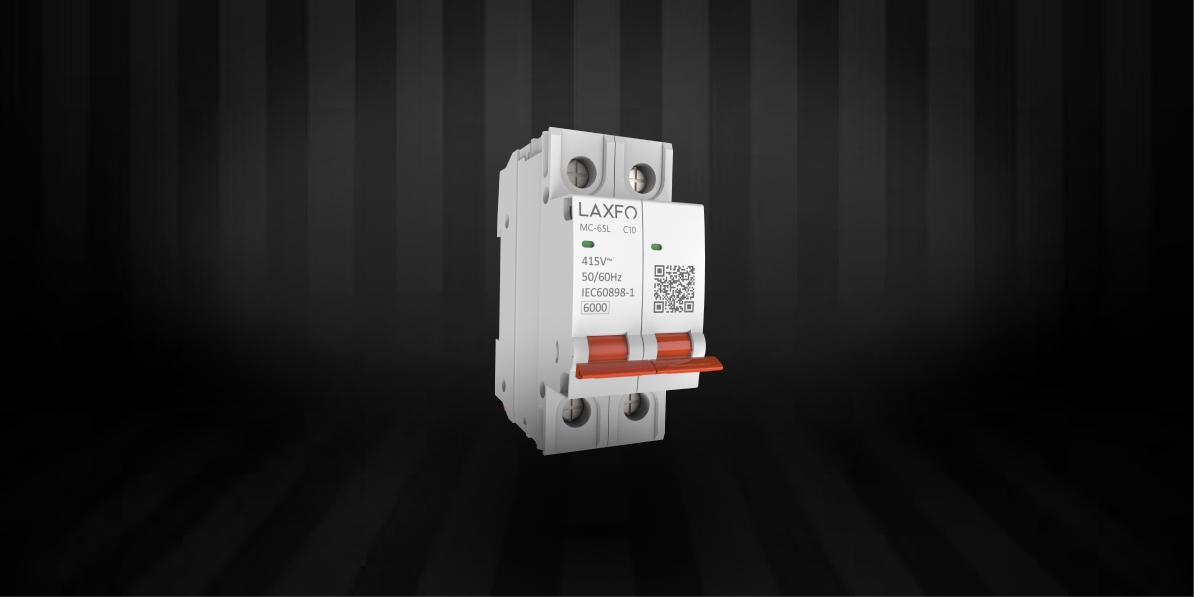

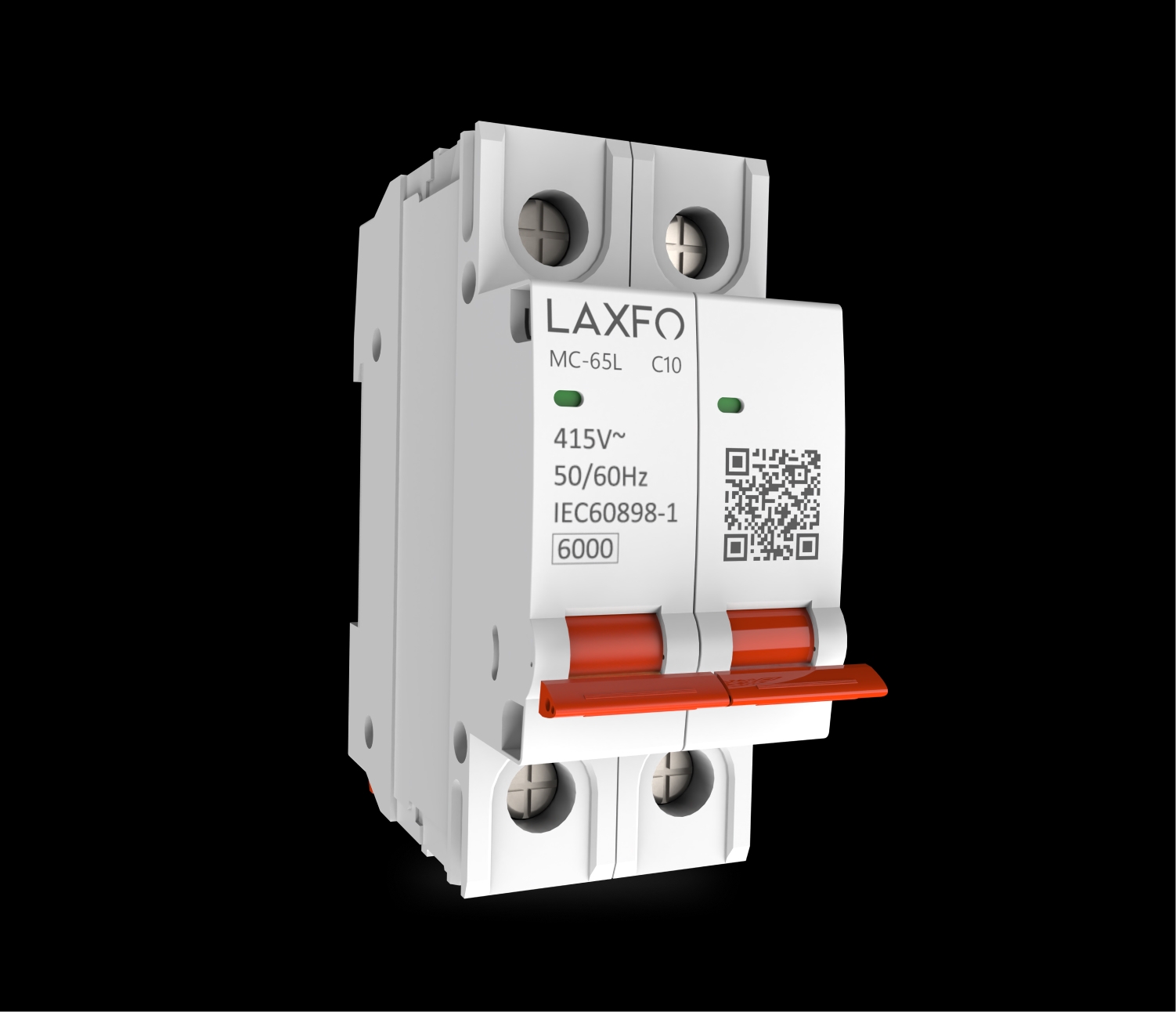

Double Pole Circuit Breaker (DPC10-6 (10A,6KA))
Keep your electrical system safe and steady with the LAXFO Double Pole Circuit Breaker. It protects your home or office from overloads and short circuits while allowing easy power control and isolation. Built to international standards (IEC 60898-1) and rated for 10 amps at 230/400 volts, it delivers reliable performance for years. With strong fire resistance, 20,000 mechanical cycles, and IP20 protection, this breaker ensures lasting safety and peace of mind for every connection.
Price
Tk.450
Specifications
| Standards: | IEC 60898-1 |
|---|---|
| Rated current In (A): | 10A |
| Rated voltage Un (VAC): | 230/400 V AC |
| Rated frequency (Hz): | 50/60 Hz |
| Rated impulse withstand voltage (Uimp): | 4KV |
| Rated short-circuit capacity (A): | 6 KA |
| Rated insulation voltage (VAC): | 500 V |
| Number of poles: | 2 |
| Tripping Curve: | C |
| Thermal operating limit (In): | 1.13 -1.45xIn |
| Degree of protection: | IP20, with connected conductors |
| Electrical life (times): | 10,000 |
| Mechanical life (times): | 20,000 |
| Mounting position: | Any |
| Fire resistance according to UL 94: | V0 |
High Breaking Capacity
Overload & Short-Circuit Protection
